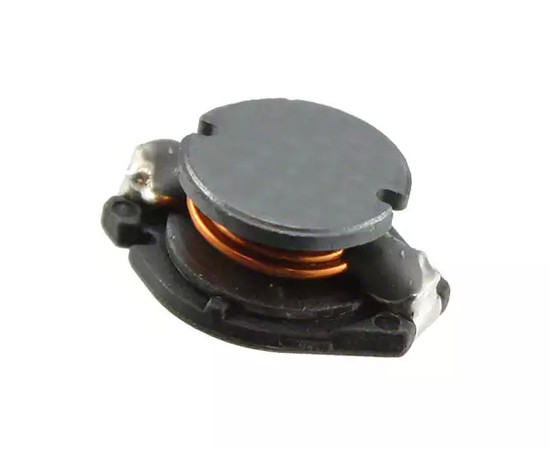

SDR1005-220ML Bourns Power inductor

Symbol Micros: D SDR1005-220ML

114019

D SDR1005-220ML

Contractor Symbol:

Case : Rys.SDR1005

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 22uH; 20%; current: 2A; resistance: 0,1R; dimensions: 12,7x10x5mm; operating temperature: -40°C ~ 125°C; equivalent: D DL22-22

Equivalents

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	12.7x10x5mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	Bourns
Mounting:	SMD
Current:	2A
Resistance:	0,1 Ohm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	12.7x10x5mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	Bourns
Mounting:	SMD
Current:	2A
Resistance:	0,1 Ohm
Operating temperature (range):	-40°C ~ 125°C
Tolerance:	20%

Equivalents

SMD Power Inductor; 22uH

Symbol Micros: SMD Power Inductor; 22uH Info Add to favourites Equivalents

Add inquiry (RFQ)

Item available on request
