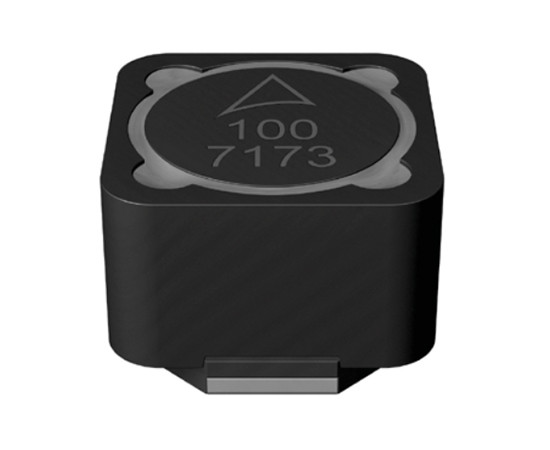

B82477P4223M000 TDK Power inductor

Symbol Micros: D SP128/0022.0 TDK

498547

D SP128/0022.0 TDK

Contractor Symbol:

Case : Rys.SP128

Datasheet

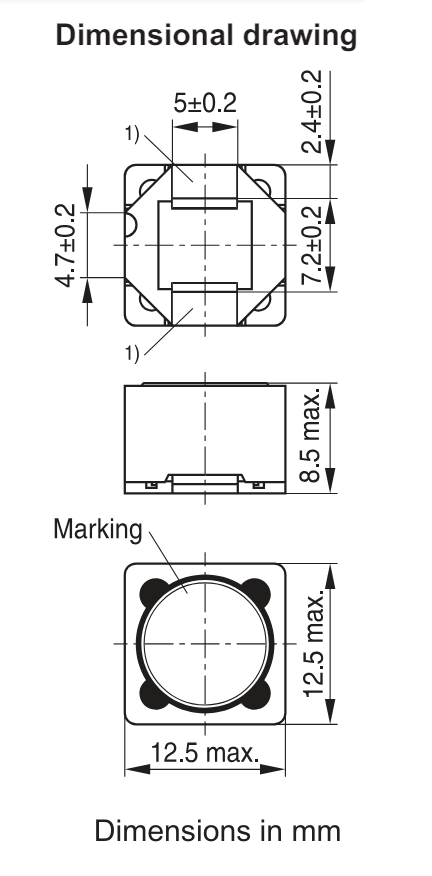

Technical drawing Add to favourites

SMD power inductor; inductance: 22uH; 20%; current: 4.15A; resistance: 0.035R; dimensions: 12,5x12,5x8,5mm; operating temperature: -55°C ~ 150°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	12.5x12.5x8.5mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	TDK
Mounting:	SMD
Current:	4,15A
Resistance:	35 mOhm

All parameters

Manufacturer:: EPCOS Manufacturer part number: B82477P4223M000 Case style: Rys.SP128

External warehouse:

6301 pcs.

Quantity of pcs.	350+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,5430

Add to comparison tool Add inquiry (RFQ)

Packaging:
350

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	12.5x12.5x8.5mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	TDK
Mounting:	SMD
Current:	4,15A
Resistance:	35 mOhm
Operating temperature (range):	-55°C ~ 150°C
Tolerance:	20%
