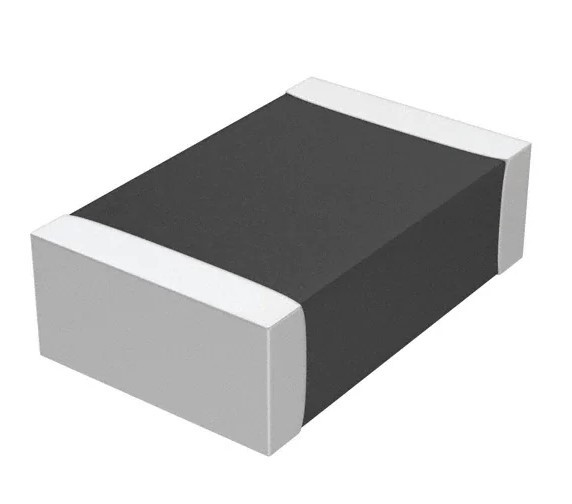

LQM21PN1R0MC0D Murata Power inductor

Symbol Micros: D0805S0001.00/0.800A/0.19Rm

296167

D0805S0001.00/0.800A/0.19Rm

Contractor Symbol:

Case : Rys.LQM21PN

Datasheet

Technical drawing Add to favourites

Power inductor; SMD0805; inductance: 1uH; 20%; current: 0.800A; resistance: 0.238R; 1MHz; operating temperature: -55°C ~ 125°C

Parameters

Case:	0805
Dimensions:	2x1.25x1.25mm
Inductance:	1uH
Inductor type:	Power
Manufacturer:	MURATA
Mounting:	SMD
Current:	0,8A

All parameters

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: LQM21PN1R0MC0D Case style: Rys.LQM21PN

External warehouse:

40000 pcs.

Quantity of pcs.	4000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0478

Add inquiry (RFQ)

Packaging:
4000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: LQM21PN1R0MC0D Case style: Rys.LQM21PN

External warehouse:

80000 pcs.

Quantity of pcs.	4000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0418

Add to comparison tool Add inquiry (RFQ)

Packaging:
4000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: LQM21PN1R0MC0D Case style: Rys.LQM21PN

External warehouse:

4000 pcs.

Quantity of pcs.	4000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0470

Add to comparison tool Add inquiry (RFQ)

Packaging:
4000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Case:	0805
Dimensions:	2x1.25x1.25mm
Inductance:	1uH
Inductor type:	Power
Manufacturer:	MURATA
Mounting:	SMD
Current:	0,8A
Resistance:	0,238Ohm
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	20%
