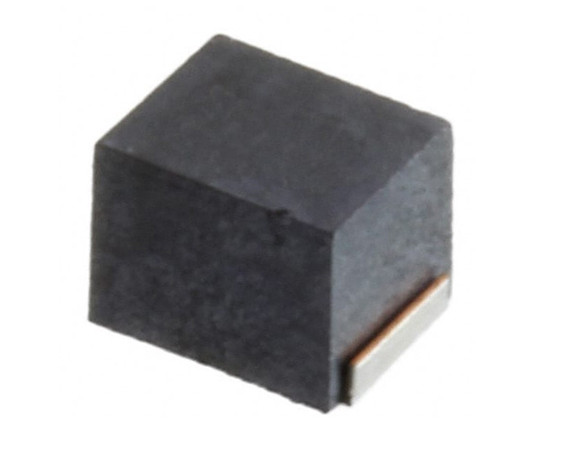

NLFV32T-102K-EF TDK Inductor

Symbol Micros: D1210S1000.00/0.020A/22.5Rk

311303

D1210S1000.00/0.020A/22.5Rk

Contractor Symbol:

Case : Rys.NLFV32-EF

Datasheet

Technical drawing Add to favourites

Inductor; SMD1210; 1000uH; 10%; 0.020A; 22.50R; 0,252MHz; operating temperature: -40°C~105°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	1210
Inductance:	1000uH
Current:	0,02A
Resistance:	22,5 Ohm
Tolerance:	10%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	1210
Inductance:	1000uH
Current:	0,02A
Resistance:	22,5 Ohm
Tolerance:	10%
Operating temperature (range):	-40°C ~ 105°C
