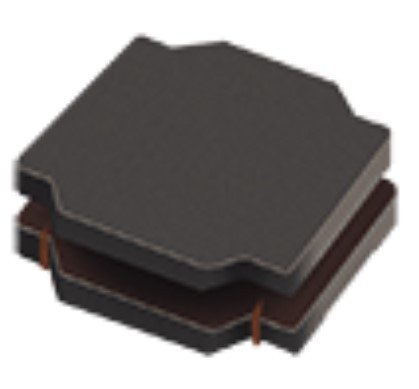

LQH5BPN4R7NT0L Murata Power inductor

Symbol Micros: D2020S0004.70/3.000A/0.058Rn

313134

D2020S0004.70/3.000A/0.058Rn

Contractor Symbol:

Case : Rys.LQH5BPN

Datasheet

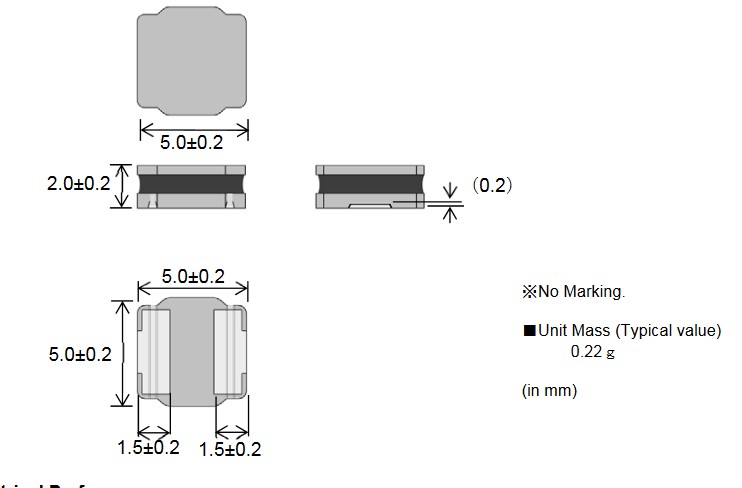

Technical drawing Add to favourites

SMD Power Inductor 4.7uH 30% 3A 58mR 5x5x2mm

Parameters

Dimensions:	5x5x2mm
Inductance:	4,7uH
Current:	3A
Resistance:	0,058 Ohm
Tolerance:	30%

All parameters

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: LQH5BPN4R7NT0L Case style: Rys.LQH5BPN

External warehouse:

26000 pcs.

Quantity of pcs.	2000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0655

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: LQH5BPN4R7NT0L Case style: Rys.LQH5BPN

External warehouse:

2000 pcs.

Quantity of pcs.	500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0837

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	5x5x2mm
Inductance:	4,7uH
Current:	3A
Resistance:	0,058 Ohm
Tolerance:	30%
