K7803-500R3

Symbol Micros: DC K7803-500r3

102987

DC K7803-500r3

Contractor Symbol:

Case : MNp-11.6x7.55-3

Datasheet

Technical drawing Add to favourites

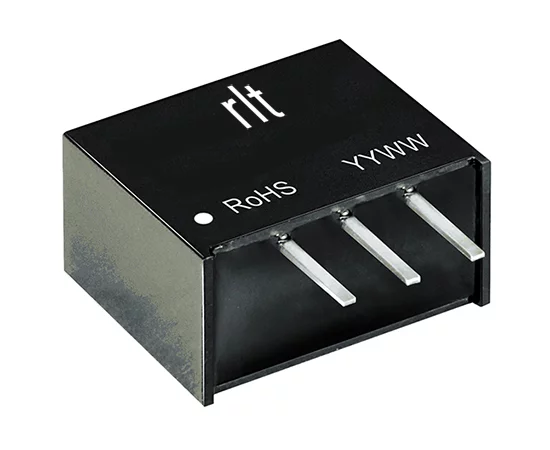

Switching Regulator, 500mA, Vin 4.75÷30V, Vout 3.3V, EFF 76/90% Replacement for: AMSR-783.3-NZ

Parameters

Output current:	500mA
Input voltage range:	4.75~30V
Output voltage:	3,3V
Case:	SIP
Input voltage:	24V
Regulated:	NO

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: K7803-500R3 RoHS Case style: MNp-11.6x7.55-3 Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	3+	10+	43+	129+
Net price (EUR)	1,8191	1,5206	1,3503	1,2500	1,2127

Add to comparison tool Add inquiry (RFQ)

Packaging:
43/688 Quantity (multiple: 1)

- +

Manufacturer:: RLT Manufacturer part number: K7803-500R3 RoHS Case style: MNp-11.6x7.55-3 Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	4+	17+	85+	255+
Net price (EUR)	1,9777	1,5112	1,2943	1,1941	1,1637

Add to comparison tool Add inquiry (RFQ)

Packaging:
17/85 Quantity (multiple: 1)

- +

• Parameters

Output current:	500mA
Input voltage range:	4.75~30V
Output voltage:	3,3V
Case:	SIP
Input voltage:	24V
Regulated:	NO
