K7803JT-500R3

Symbol Micros: DC K7803jt-500r3

249968

DC K7803jt-500r3

Contractor Symbol:

Case : MNs-13.5x12.5x3.5

Datasheet

Technical drawing Add to favourites

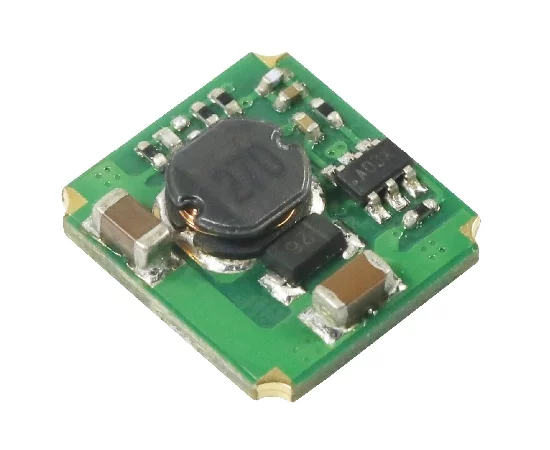

Switching Regulator, 500mA, Vin 4.75÷36V, Vout 3.3V, EFF 80/86%

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Output current:	500mA
Input voltage range:	4.75~36V
Insulation breakdown voltage:	0V
Output voltage:	3,3V
Case:	SMD
Input voltage:	24V
Regulated:	NO

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: K7803JT-500R3 RoHS Case style: MNs-13.5x12.5x3.5 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,9025	1,4119	1,2346	1,1470	1,1194

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Output current:	500mA
Input voltage range:	4.75~36V
Insulation breakdown voltage:	0V
Output voltage:	3,3V
Case:	SMD
Input voltage:	24V
Regulated:	NO
