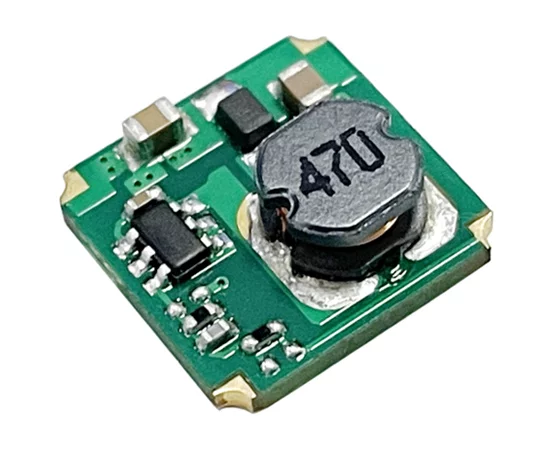

K7803JT-500R3-LB

Symbol Micros: DC K7803jt-500r3-lb

358552

DC K7803jt-500r3-lb

Contractor Symbol:

Case : Mns-12x12x4.5

Datasheet

Technical drawing Add to favourites

Switching Regulator, 500mA, Vin 4.75÷36V, Vout 3.3V, EFF 76/85%

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Output current:	500mA
Input voltage range:	4.75~36V
Insulation breakdown voltage:	0V
Output voltage:	3,3V
Case:	SMD
Input voltage:	24V
Regulated:	NO

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: K7803JT-500R3-LB RoHS Case style: Mns-12x12x4.5 Datasheet

In stock:

12 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	0,9325	0,6839	0,5503	0,4720	0,4444

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Output current:	500mA
Input voltage range:	4.75~36V
Insulation breakdown voltage:	0V
Output voltage:	3,3V
Case:	SMD
Input voltage:	24V
Regulated:	NO
