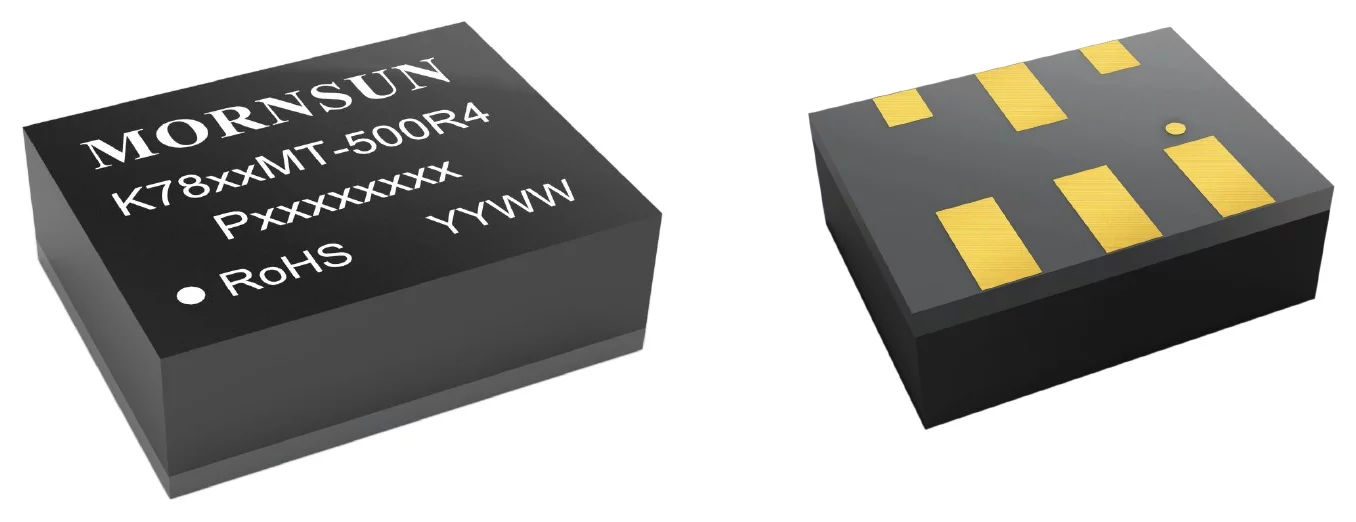

K7815MT-500R4

Symbol Micros: DC K7815mt-500r4

318149

DC K7815mt-500r4

Contractor Symbol:

Case : DFN06(9x7x3.1)

Datasheet

Technical drawing Add to favourites

Switching Regulator, 500mA, Vin 15÷36V, Vout 15V, EFF 87/91/91%

Parameters

Output current:	500mA
Input voltage range:	15~36V
Output voltage:	15V
Case:	DFN
Input voltage:	24V
Regulated:	NO

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: K7815MT-500R4 RoHS Case style: DFN06(9x7x3.1) Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,6319	1,1438	0,9715	0,8878	0,8590

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Output current:	500mA
Input voltage range:	15~36V
Output voltage:	15V
Case:	DFN
Input voltage:	24V
Regulated:	NO
