PTN78000HAH

Symbol Micros: DC PTN78000hah

179476

DC PTN78000hah

Contractor Symbol:

Case : Rys.PTN78000-DIP5

Datasheet

Technical drawing Add to favourites

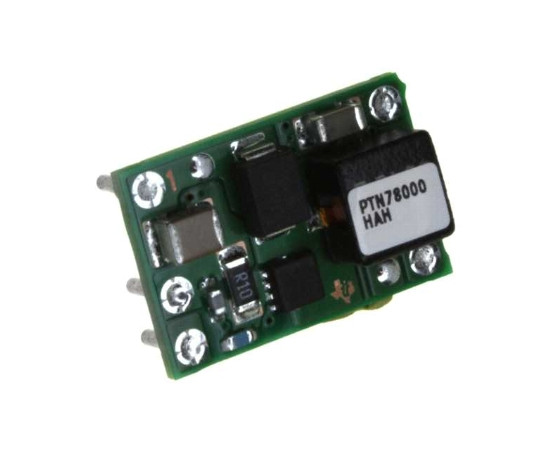

Switching Regulator; 1,5A; 22,5W; Vin 15V~36V; Vout 11,85V~22V; Efficiency: 94%; -40°C ~ 85°C;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Input voltage range:	15V~36V
Output current:	1,5A
Output voltage range [V]:	11,85V~22V
Efficiency:	94%
Power:	22,5W
Input voltage:	36V
Output current 1:	0A

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: PTN78000HAH RoHS Case style: Rys.PTN78000-DIP5 Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	17,6412	15,9087	14,6438	13,4826	12,8767

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Input voltage range:	15V~36V
Output current:	1,5A
Output voltage range [V]:	11,85V~22V
Efficiency:	94%
Power:	22,5W
Input voltage:	36V
Output current 1:	0A
Output voltage:	22V
Insulation breakdown voltage:	0V
Secondary voltage 1:	0V
Secondary voltage 2:	0V
Output current symetric [mA]:	-
Symetric output votage:	-
Output current 2:	0A
