QAU242D2G

Symbol Micros: DC QAU242d2g

295769

DC QAU242d2g

Contractor Symbol:

Case : MNd-31.7x20.3-24q

Datasheet

Technical drawing Add to favourites

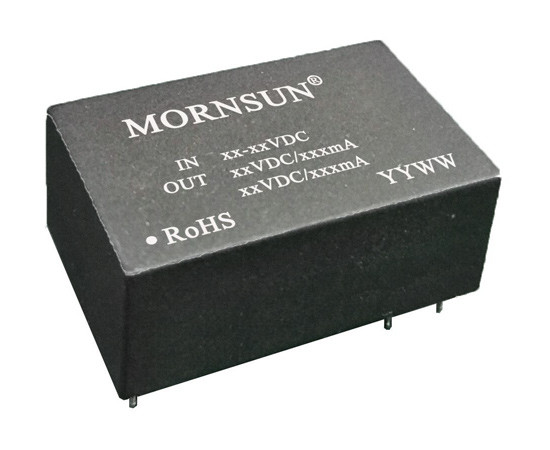

Regulated DC/DC Converter, 7.2W, 150mA/150mA, Vin 9÷36V, Vout 24V/24V, Viso 4200VDC, EFF 85% For IGBT Driver

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Regulated:	YES
Output current:	150mA/150mA
Input voltage:	24V
Input voltage range:	9V ~ 36V
Output voltage:	24V/24V
Insulation breakdown voltage:	4200V
Operating temperature (range):	-40°C ~ 105°C

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: QAU242D2G RoHS Case style: MNd-31.7x20.3-24q Datasheet

In stock:

7 pcs.

Quantity of pcs.	1+	3+	7+	21+	63+
Net price (EUR)	6,5196	5,9928	5,7443	5,5465	5,4338

Add to comparison tool Add inquiry (RFQ)

Packaging:
7 Quantity (multiple: 1)

- +

• Parameters

Regulated:	YES
Output current:	150mA/150mA
Input voltage:	24V
Input voltage range:	9V ~ 36V
Output voltage:	24V/24V
Insulation breakdown voltage:	4200V
Operating temperature (range):	-40°C ~ 105°C
Case:	DIP
