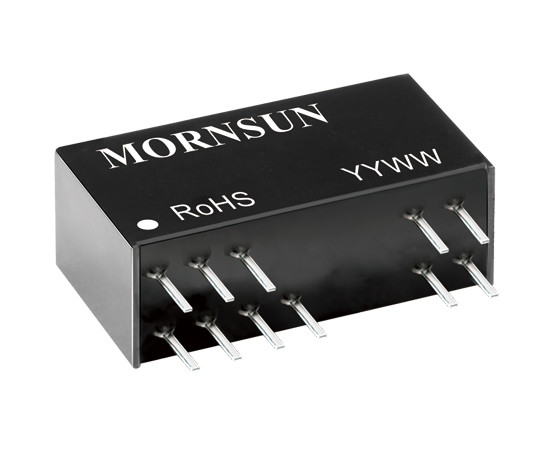

TE6654N

Symbol Micros: DC TE6654n

90081

DC TE6654n

Contractor Symbol:

Case : MNd-26.0x9.5-18te

Datasheet

Technical drawing Add to favourites

Isolated Transmitter, 12V, Sin 0÷5V, Sout 0÷5V, IO 15V, Viso 2000VAC, -40÷85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Supply voltage:	12V
Input signal:	0~5V
Output signal:	0~5V
Isolated output:	15V
Insulation breakdown voltage:	2000V
Operating temperature (range):	-40°C ~ 85°C
Case:	DIP

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: TE6654N RoHS Case style: MNd-26.0x9.5-18te Datasheet

In stock:

3 pcs.

Quantity of pcs.	1+	3+	6+	15+	30+
Net price (EUR)	7,2794	6,7932	6,5959	6,4197	6,3305

Add to comparison tool Add inquiry (RFQ)

Packaging:
3 Quantity (multiple: 1)

- +

Manufacturer:: MORNSUN - EOL Manufacturer part number: TE6654N RoHS Case style: MNd-26.0x9.5-18te Datasheet

In stock:

2 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,9067	0,5755	0,4534	0,4134	0,3946

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Supply voltage:	12V
Input signal:	0~5V
Output signal:	0~5V
Isolated output:	15V
Insulation breakdown voltage:	2000V
Operating temperature (range):	-40°C ~ 85°C
Case:	DIP
