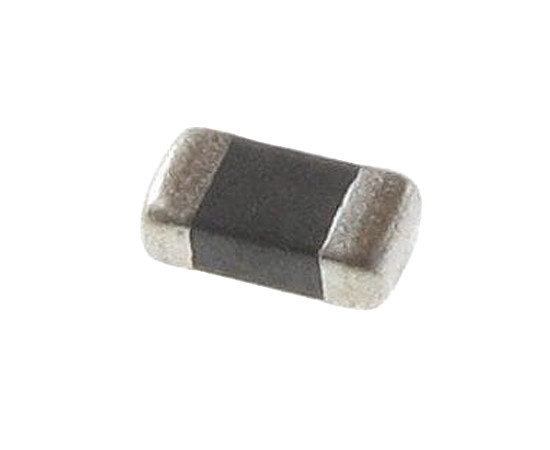

BLM15AG100SN1D Murata Ferrite bead

Symbol Micros: DK0402S0010.0/1.000A/0.050R

293444

DK0402S0010.0/1.000A/0.050R

Contractor Symbol:

Case : Rys.BLM15a

Datasheet

Technical drawing Add to favourites

Ferrite bead; impedance: 10R; (100MHz); +-25%; 1A; 0.025R; SMD0402; operating temperature: -55÷125°C

Parameters

Manufacturer:	MURATA
Mounting:	SMD
Case:	0402
Impedance @ 100MHz:	10 Ohm
Current:	1A
Resistance:	0,025 Ohm
Tolerance:	25%

All parameters

Manufacturer:: Murata Elektronik GmbH Manufacturer part number: BLM15AG100SN1D RoHS Case style: Rys.BLM15a Datasheet

In stock:

10000 pcs.

Quantity of pcs.	20+	100+	500+	2000+	10000+
Net price (EUR)	0,0519	0,0193	0,0103	0,0080	0,0072

Add to comparison tool Add inquiry (RFQ)

Packaging:
10000 Quantity (multiple: 10)

- +

• Parameters

Manufacturer:	MURATA
Mounting:	SMD
Case:	0402
Impedance @ 100MHz:	10 Ohm
Current:	1A
Resistance:	0,025 Ohm
Tolerance:	25%
Operating temperature (range):	-55°C ~ 125°C
Ferrite type:	Bead
