Detailed description

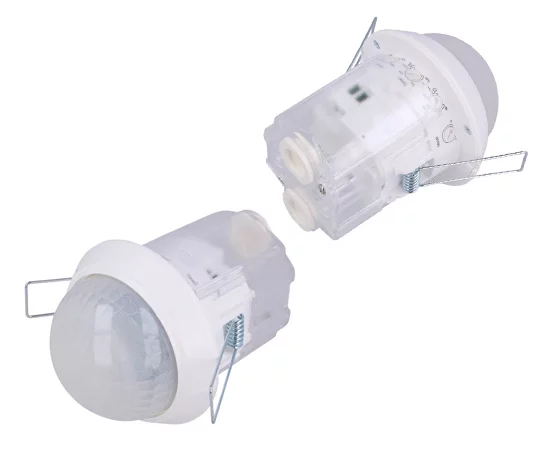

Presence Sensor Talis IITALIS II P 360-10-2 HF
Sensor Type: Presence Sensor
Dimensions (MM): Ø80 x 70
Voltage: 230V
Connection Compatibility: Incandescent lamp load max. 2000W
Halogen lamp load (AC) max. 1000W
Halogen lamp load (LV) max. 600W (traditional)
Halogen lamp load (LV) max. 900W (electronic)
LED lamp max. 400W
Energy-saving lamp max. 400W
Energy Consumption: <1W (in standby mode)
Coverage: up to 360°
Range: approx. Ø10m, at a mounting height of 2.5m
Time Setting: CH 1 approx. 5sec. - 30 min, CH 2 approx. 10sec - 60 min
Number of Channels: 1/2
Operating Temperature: -20°C to +50°C
Protection Class: II
Degree of Protection: IP 54
Installation Type: Ceiling-mounted installation
