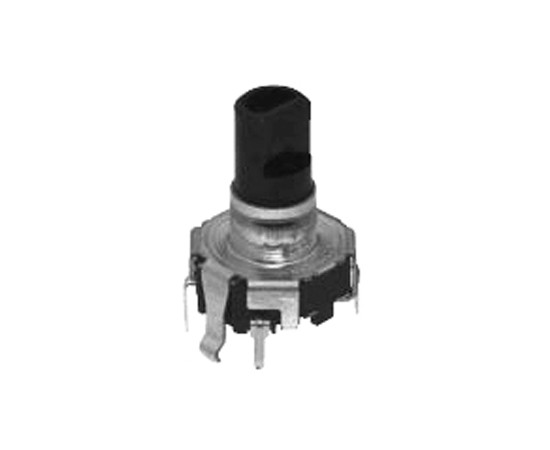

EC12D1524403 Alps Incremental encoder

Symbol Micros: EC 12D1524403

114180

EC 12D1524403

Contractor Symbol:

Case : rys.EC12D1524403

Datasheet

Technical drawing Add to favourites

Incremental encoder; THT; 5mA; 15imp/revol; 30000 cycles; shaft length: 5mm; shaft diameter: 5,975mm

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Shaft length:	5mm
Resolution:	15
Manufacturer:	ALPS
Shaft diameter:	5,975mm
Built-in button:	Yes
Mounting:	THT
Mounting thread:	No

All parameters

Manufacturer:: ALPS Manufacturer part number: EC12D1524403 RoHS Case style: rys.EC12D1524403 Datasheet

In stock:

8 pcs.

Quantity of pcs.	2+	10+	80+	320+	960+
Net price (EUR)	0,7023	0,4440	0,3383	0,3148	0,3054

Add to comparison tool Add inquiry (RFQ)

Packaging:
80/320 Quantity (multiple: 1)

- +

• Parameters

Shaft length:	5mm
Resolution:	15
Manufacturer:	ALPS
Shaft diameter:	5,975mm
Built-in button:	Yes
Mounting:	THT
Mounting thread:	No
Operating current:	5mA
Pressure force:	3N
Orientation:	Horizontal
