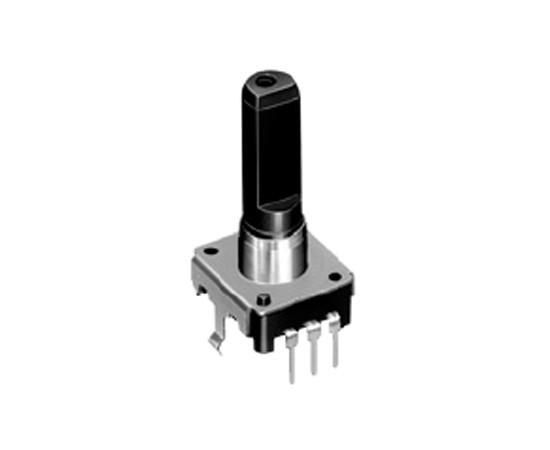

EC12E24204A9 Alps Incremental encoder

Symbol Micros: EC 12E24204A9

114184

EC 12E24204A9

Contractor Symbol:

Case : rys.EC12E24204A9

Datasheet

Technical drawing Add to favourites

Incremental encoder; THT; 5mA; 24imp/revol; 30000 cycles; shaft length: 12mm; shaft diameter: 6mm

Parameters

Shaft length:	12mm
Resolution:	24
Manufacturer:	ALPS
Shaft diameter:	6mm
Built-in button:	No
Mounting:	THT
Mounting thread:	No

All parameters

Manufacturer:: ALPS Manufacturer part number: EC12E24204A9 RoHS Case style: rys.EC12E24204A9 Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,2821	0,8982	0,7632	0,6981	0,6748

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: ALPS Manufacturer part number: EC12E24204A9 Case style: rys.EC12E24204A9

External warehouse:

2270 pcs.

Quantity of pcs.	1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,6748

Add to comparison tool Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Shaft length:	12mm
Resolution:	24
Manufacturer:	ALPS
Shaft diameter:	6mm
Built-in button:	No
Mounting:	THT
Mounting thread:	No
Operating current:	5mA
Orientation:	Horizontal
