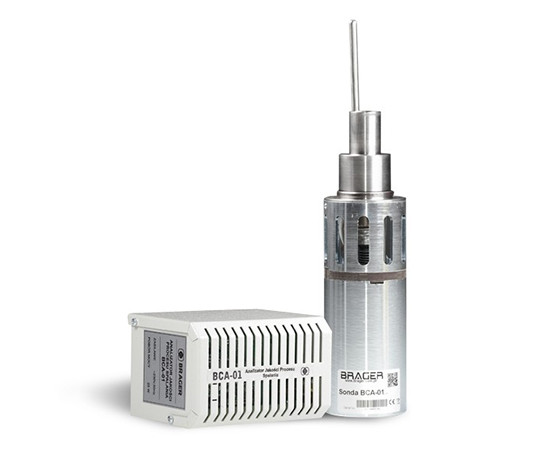

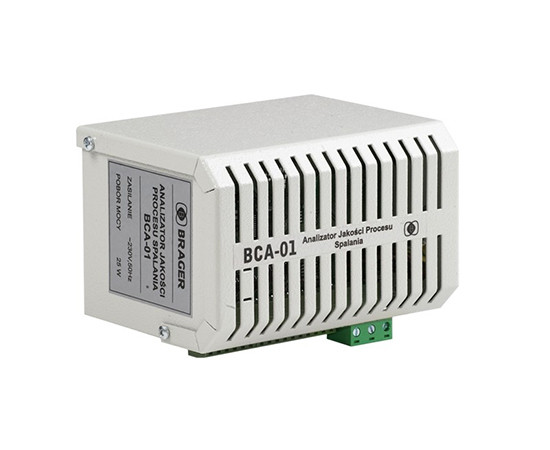

Fuel combustion analyser BCA-01 Brager

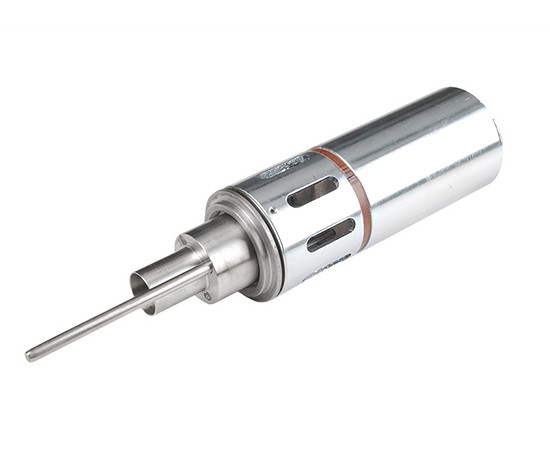

Construction with patent allows continous measurment in dust-laden waste gas. Measurment device to control many phisycal and chemcal parameters informing about quality of combustion process. Probe construction allows to keep measurment in dust-laden waste gas from combustion of solid fuels. According to application of measurment pieces temperature of exhaust can't be higher than 450oC. Fuel combustion analyser allows measurment following parameters: - Precentage concentration of oxygen O2 in exhaust (0 to 20,9 %), - Coefficient air overflow [λ], - Precentage concentration of carbon dioxide CO2, - Waste gas temperature - Boiler air intake temperature, - Flue losses Analyser is equipped with many communication options allows cooperation between other devices. It has two analog outputs implement transmission protocol BRAGER i MODBUS RTU. Key pros of device Industrial closet allowing measurment in medium and large capacity boilers Measurment main parameters of combustion process Wire communication via BRAGER protocol Wire communication via protocol MODBUS RTU Configurable analog output : 0-10 V, 4 – 20 mA Co-operation with PLC automatics Co-operation with BRAGER company devices Device work conditions Parameter Value/Range Measurement probe module BCA-01 Module power voltage 15 VDC, 9 VDC Immersion heater power consumption 7,5 W Maximum waste gas temperatrure 450 oC Range of waste gas temperature measurement 0 – 400 oC Maximum environment temperature 50 oC Operating position Search in manual Maximum measurement incorrection +/­- 0,5 % O2 Communication with power supply module RS 485 (own connection protocol) Measurement part durability 1 – 3 years Power supply module BCA-01 Supply voltage 30 VAC, 50 Hz Power consumption Max. 25 W Work temperature ragne 0 – 50 oC Operating position Any Montage Rail DIN
