GKS-050-0002 Ingun
Symbol Micros:
M GKS-050-0002
Case : Rys.M GKS-050-0002

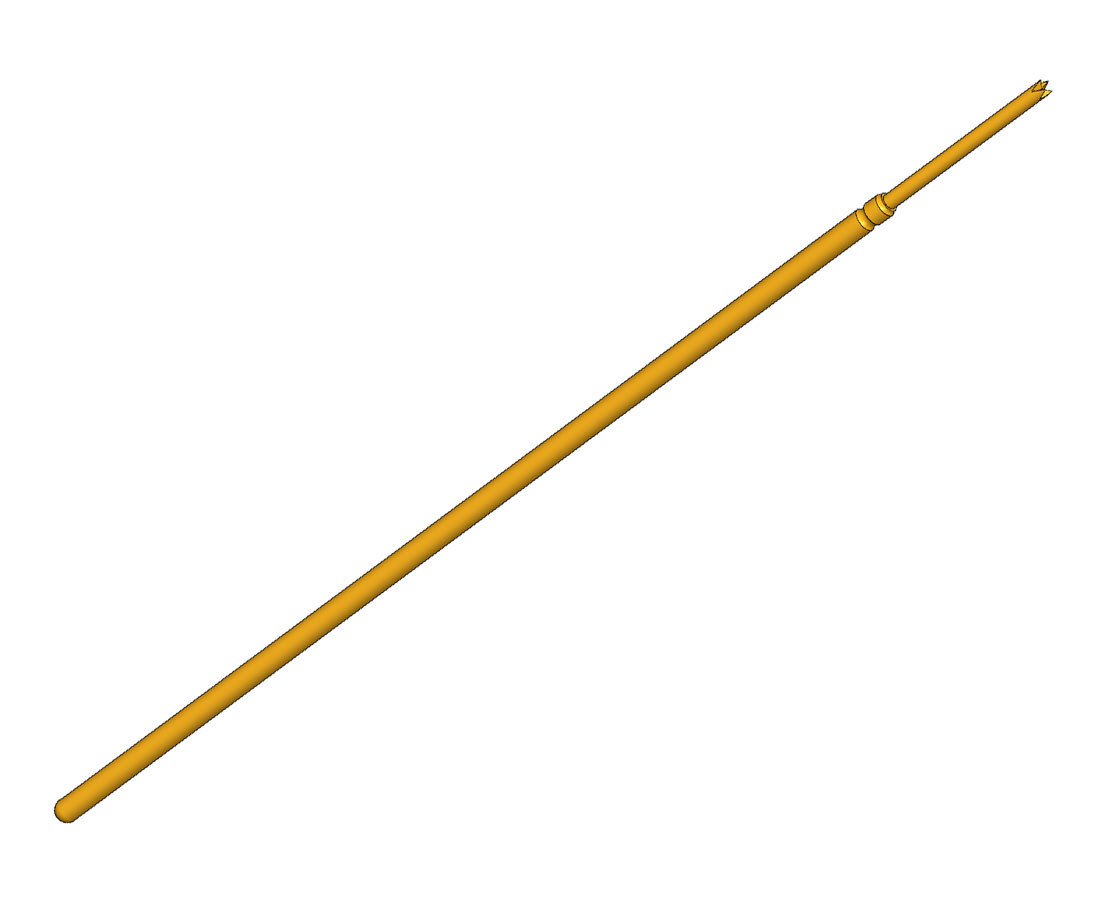

Test probe; max. spring compression: 6,35mm; spring compression force: 2N; current rating; 2A; length: 43,2mm Contact material: steel; contact plating: gold-plated; max. contact resistance 20mOhm; blade tip shape: 4-piont, corona; tip diameter: 0,5mm; mounting: push-in
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Lenght: | 43,2mm |
| Collar diameter: | 0,78mm |
| Collar height: | 36,3mm |
| Diameter of plug system: | 0,5mm |
| Related items: | Socket series KS-050 |
| Blade tip shape: | 4-piont, corona |
| Current: | 2A |
Manufacturer:: INGUN
Manufacturer part number: GKS-050-0002 RoHS
Case style: Rys.M GKS-050-0002
In stock:
30 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 30+ | 90+ |
|---|---|---|---|---|---|
| Net price (EUR) | 4,2966 | 3,8153 | 3,5275 | 3,3848 | 3,3042 |
| Lenght: | 43,2mm |
| Collar diameter: | 0,78mm |
| Collar height: | 36,3mm |
| Diameter of plug system: | 0,5mm |
| Related items: | Socket series KS-050 |
| Blade tip shape: | 4-piont, corona |
| Current: | 2A |
| Mounting: | Push Mount |
| Spring compression force: | 2N |
| Operating temperature (range): | -40°C ~ 80°C |
| Working spring deflection: | 4,3mm |
| Accessories type: | Test probe |
| Brand: | ingun |
| Contact material: | Steel |
| Max. bias of the springs: | 6,35mm |
| Contact plating: | Gold-Plated |
| Max. contact resistance: | 20mOhm |
