GKS-075-0004 Ingun
Symbol Micros:
M GKS-075-0004
Case : Rys.M GKS-075-0004

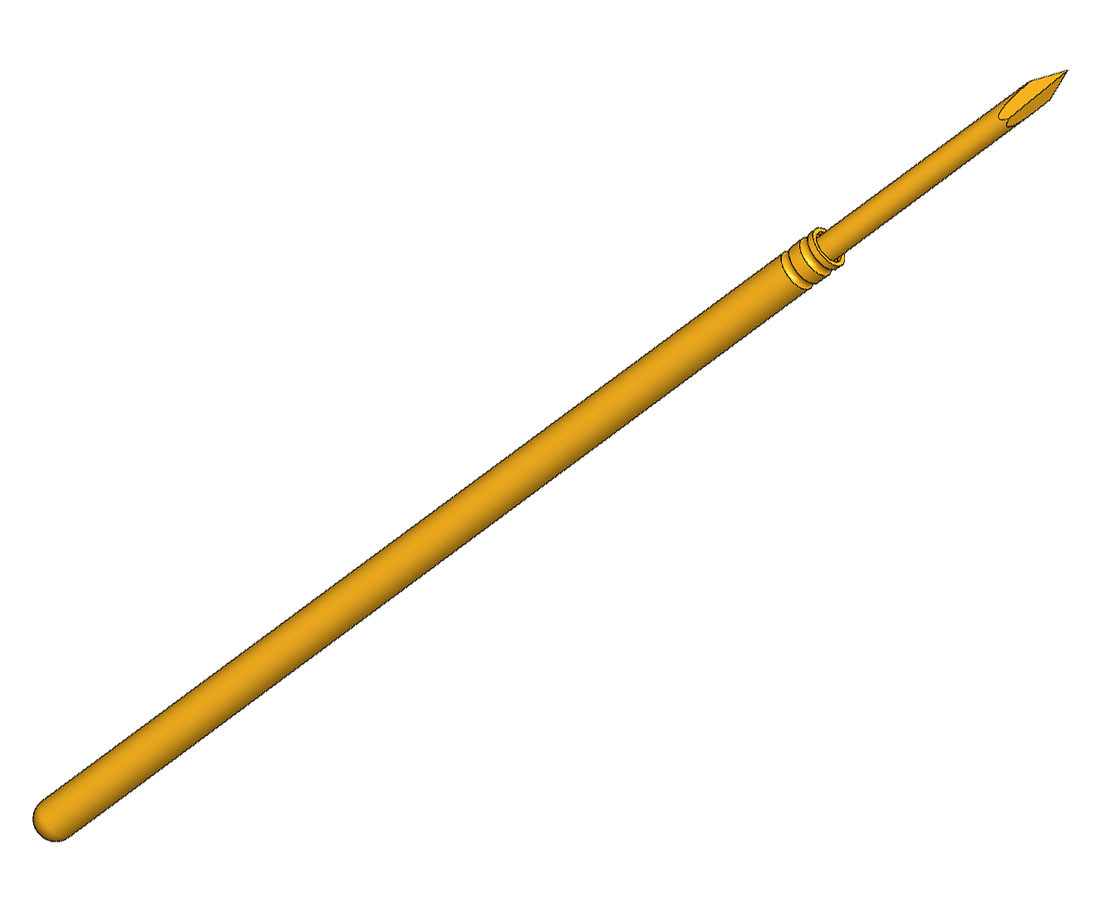

Test probe; max. spring compression: 6,35mm; spring compression force: 2N; current rating; 3A; length: 33,1mm Contact material: steel; contact plating: gold-plated; max. contact resistance 20mOhm; blade tip shape: sharp; tip diameter: 0,64mm; mounting: push-in
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Lenght: | 33,1mm |
| Collar diameter: | 1,02mm |
| Collar height: | 25,4mm |
| Diameter of plug system: | 0,64mm |
| Related items: | Socket series KS-075 |
| Blade tip shape: | Sharp |
| Current: | 3A |
Manufacturer:: INGUN
Manufacturer part number: GKS-075-0004 RoHS
Case style: Rys.M GKS-075-0004
In stock:
30 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 30+ | 90+ |
|---|---|---|---|---|---|
| Net price (EUR) | 3,9006 | 3,4651 | 3,2025 | 3,0734 | 2,9997 |
| Lenght: | 33,1mm |
| Collar diameter: | 1,02mm |
| Collar height: | 25,4mm |
| Diameter of plug system: | 0,64mm |
| Related items: | Socket series KS-075 |
| Blade tip shape: | Sharp |
| Current: | 3A |
| Mounting: | Push Mount |
| Spring compression force: | 2N |
| Operating temperature (range): | -40°C ~ 80°C |
| Working spring deflection: | 4,3mm |
| Accessories type: | Test probe |
| Brand: | ingun |
| Contact material: | Steel |
| Max. bias of the springs: | 6,35mm |
| Contact plating: | Gold-Plated |
| Max. contact resistance: | 20mOhm |
