GKS-100-0195 Ingun
Symbol Micros:
M GKS-100-0195
Case : Rys.M GKS-100-0195

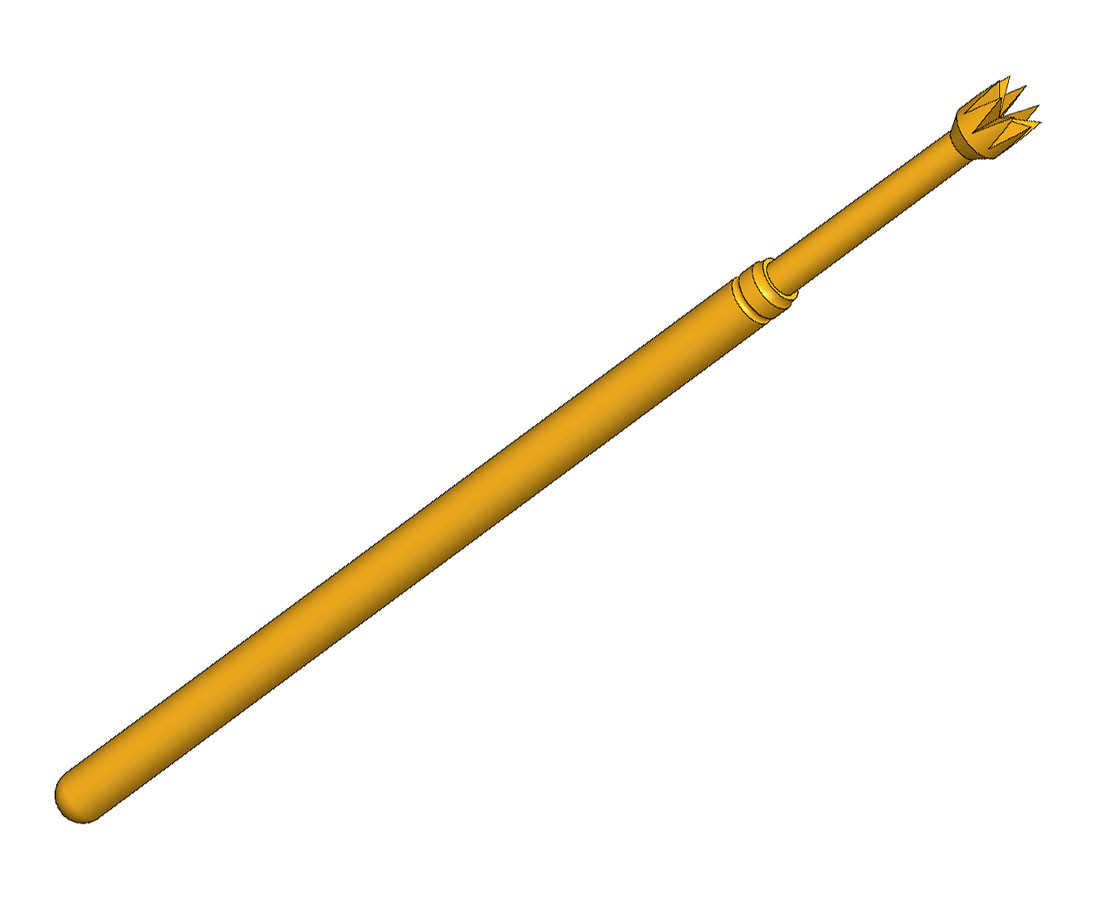

Test probe; max. spring compression: 6,35mm; spring compression force: 2N; current rating; 5A; length: 33,4mm Contact material: steel; contact plating: gold-plated; max. contact resistance 20mOhm; blade tip shape: 8-piont, corona; tip diameter: 1,5mm; mounting: push-in
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Lenght: | 33,4mm |
| Collar diameter: | 1,37mm |
| Collar height: | 25mm |
| Diameter of plug system: | 1,5mm |
| Related items: | Socket series KS-100 |
| Blade tip shape: | 8-piont, corona |
| Current: | 5A |
Manufacturer:: INGUN
Manufacturer part number: GKS-100-0195 RoHS
Case style: Rys.M GKS-100-0195
In stock:
30 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 30+ | 90+ |
|---|---|---|---|---|---|
| Net price (EUR) | 3,5516 | 3,1547 | 2,9174 | 2,7976 | 2,7318 |
| Lenght: | 33,4mm |
| Collar diameter: | 1,37mm |
| Collar height: | 25mm |
| Diameter of plug system: | 1,5mm |
| Related items: | Socket series KS-100 |
| Blade tip shape: | 8-piont, corona |
| Current: | 5A |
| Mounting: | Push Mount |
| Spring compression force: | 2N |
| Operating temperature (range): | -40°C ~ 80°C |
| Working spring deflection: | 4,3mm |
| Accessories type: | Test probe |
| Brand: | ingun |
| Contact material: | Steel |
| Max. bias of the springs: | 6,35mm |
| Contact plating: | Gold-Plated |
| Max. contact resistance: | 20mOhm |
