M MP-1W-2408
Detailed description

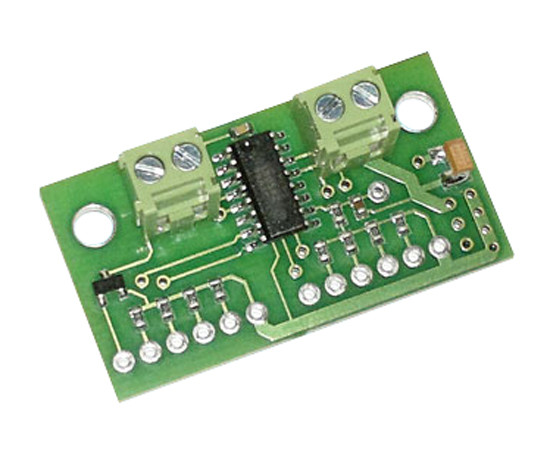

The module is a ready-to-use digital I/O element (TTL 5V standard), controlled via the 1-Wire bus. The device is based on the DS2408 chip from Dallas-Maxim and works with all 1-Wire interfaces produced by Mera-Projekt, both USB and RS232, as well as control and measurement interfaces from the MP-IKP1W series.
Properties:
- The device is built on the DS2408 chip from MAXIM-DALLAS
- The device is identified in the 1-Wire network through a unique serial number stored in the DS2408 chip
- 1-Wire connections in the form of a screw terminal
- I/O connections in the form of a gold-pin connector
- Signal level for I/O: TTL 5V, active low (in normal operation, the I/O lines are at +5V)
- Power supply: 5V DC via screw terminal. Maximum current consumption: 7mA
- Large amount of free software and source code
- Works with the free OneWireViewer software from MAXIM-DALLAS
- Module dimensions (mm): 38 x 21
