M MP00112

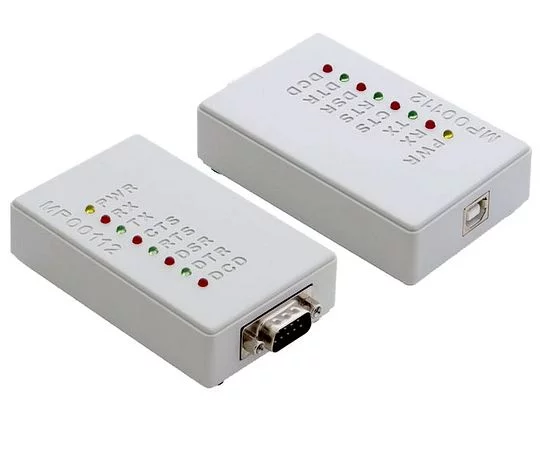

The MP00112 converter is built on the FT232RL controller by FTDI. It enables data transfer at speeds of up to 230kb/s. Thanks to its drivers, which emulate a serial port, the converter is perfectly suited for applications where RS232 serial communication was previously used.

The included drivers allow users to write their own communication procedures in the same way as for devices transmitting data via the RS232 interface. Typical terminal programs, such as HyperTerminal, can also be used for communication from the computer side. More advanced programmers can utilize the included D2XX drivers (USB Direct Drivers + DLL S/W Interface). A significant advantage of this module is the ability to select almost any transmission speed, provided the sending and receiving ends share the same settings.
The device features galvanic isolation, implemented using iCouplerR technology from Analog Devices. The signal line isolation level is 2.5kV (RMS).
The galvanic isolation applies to the following signals: RX, TX, CTS, RTS, DSR, DTR, DCD, and signal ground GND. The RI pin of the serial interface is not utilized.

Key Specifications:

• Data transmission speed up to 230kb/s

• Supports modem control and handshaking (hardware and Xon/Xoff)

• UART serial communication: 7 or 8 data bits, 1 or 2 stop bits, parity control (none, even, odd, mark, space)

• Buffers: 384-byte transmit buffer, 128-byte receive buffer

• Programmable timeout for the receive buffer

• Support for suspend and resume operations

• Automatic reset on device initialization

• Data transmission modes: USB Bulk or Isochronous

• Capability to store user parameters in non-volatile EEPROM

• Powered via USB interface

• Compatible with UHCI/OHCI/EHCI host controllers

• Compatible with USB 1.1 and 2.0 standards

• Advanced isolation technology by iCouplerR from Analog Devices

• Galvanic isolation of 7 signal lines: RX, TX, CTS, RTS, DSR, DTR, and DCD

• Signal isolation level: 2.5kV (RMS for 1 minute test)

• Power isolation level (internal DC/DC converter): 1kV (DC)

• Dimensions (excluding connectors): 89mm x 55mm x 24mm

• Enclosure material: ABS (Acrylonitrile Butadiene Styrene)

NOTE: USB cable must be purchased separately.
