MP00311-RS232
Symbol Micros:
M MP00311-rs232
Case : Rys.MP00311-RS232
LED display panel, 4 digits, 14mm digit height, control via RS232 port Display color: red (or green), 5V power supply, 530mA max. supply current
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Detailed description

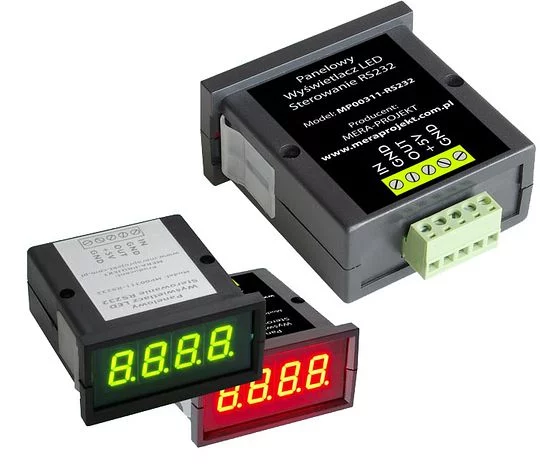

The MP00311-RS232 panel display is a ready-to-use module for displaying numeric data (4 digits, 14mm high). The data is sent to the display via an RS232 serial connection.
The display can be used directly with a PC through a COM serial port. Data display on the display units is done in a static manner. The device's housing is made of ABS and is available in two colors: white (RAL 9003) or black (RAL 9004).
Note: The panel is available with displays in red.
Features:
- Control: RS232 (allowing direct connection to the COM serial port of a computer).
- Cascading multiple displays together is possible.
- Maximum connection length between system components: 15m (according to the RS232 standard).
- Power supply: +5V DC.
- Maximum current consumption (when all LED segments are lit): 530mA.
- Housing made of ABS, available in white or black.
- Static digit display.
- Digit height: 14mm.
