RASPBERRY PI CM3+/LITE - Compute Module 3+ Lite
Write sales // micros.com.pl or call: +48 785 054 437

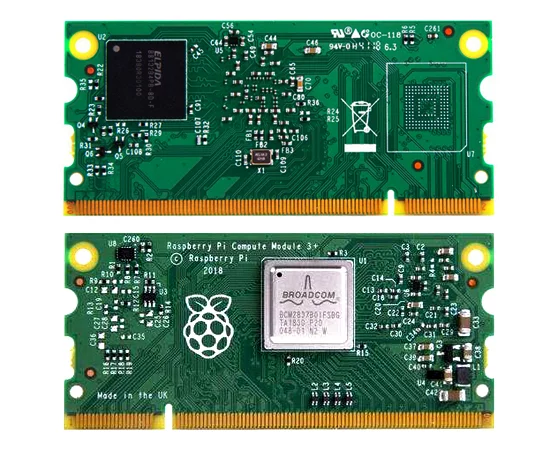

The Raspberry Pi CM3+ - Compute Module 3+ is a miniature version of the Raspberry Pi 3 Model B+ computer designed for industrial applications.
The Raspberry Pi CM3+ contains the key components of the Raspberry Pi 3 Model B+ (a BCM2837 processor clocked at 1.2GHz and 1 GB of RAM), as well as optionally eMMC Flash memory of 8 GB, 16 GB, or 32 GB (equivalent to the SD card in Pi). The Lite version does not include eMMC Flash memory. All of this is integrated onto a small board measuring 67.6 mm x 31 mm, which fits into a standard DDR2 SODIMM connector. This is the same type of connector used for laptop memory. The Flash memory is connected directly to the processor, while the remaining processor interfaces are available to the user through connector pins.
Peripherals:
- 48x GPIO
- 2x I2C
- 2x SPI
- 2x UART
- 2x SD / SDIO
- 1x HDMI 1.3a
- 1x USB2 HOST / OTG
- 1x DPI
- 1x NAND interface (SMI)
- 1x 4-lane CSI camera interface
- 1x 2-lane CSI camera interface
- 1x 4-lane DSI display interface
- 1x 2-lane DSI display interface
