095503-2661 MOLEX

Symbol Micros: M095503-2661

48538

M095503-2661

Contractor Symbol:

Case : Rys.095503-2661

Datasheet

Technical drawing Add to favourites

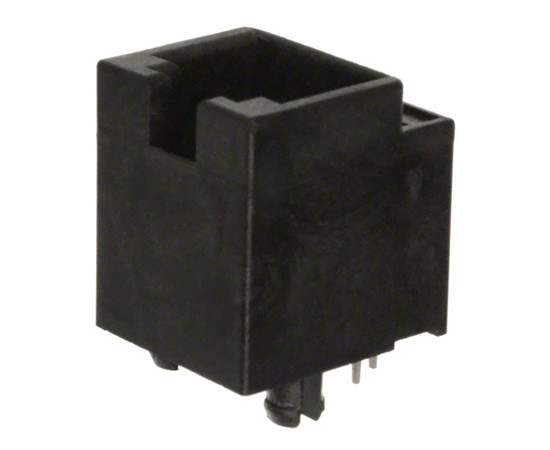

modular jack 6P6C, angled, 6/6, top entry, for PCB

Parameters

Manufacturer:	MOLEX
Type of pin configuration:	6p6c
Connector type:	Without panel stop
Spatial orientation:	Vertical
Mounting:	For printing

All parameters

Manufacturer:: MOLEX Manufacturer part number: 0955032661 Case style: Rys.095503-2661

External warehouse:

4009 pcs.

Quantity of pcs.	1547+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,5841

Add inquiry (RFQ)

Packaging:
1547

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	MOLEX
Type of pin configuration:	6p6c
Connector type:	Without panel stop
Spatial orientation:	Vertical
Mounting:	For printing
