MTC110-12
Symbol Micros:
MO MTC110-12
Case : ZL-M1T

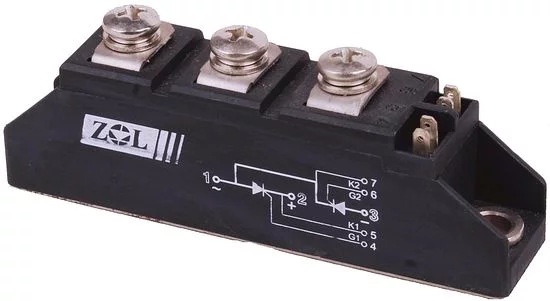

Thyristor / Thyristor Module, Series Connection, 110A, 1200V, ZL-M1T package Replacement for: SKKT106/12E, IRKT105/12A, VSKT105/12, MCC95-12IO1B
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Current: | 110A |
| Operating voltage: | 1200V |
| Type: | Thyristor/Thyristor |
| Case: | ZL-M1T |
| Connection: | Series connection |
| Current: | 110A |
| Operating voltage: | 1200V |
| Type: | Thyristor/Thyristor |
| Case: | ZL-M1T |
| Connection: | Series connection |
Detailed description
Maximum operating temperature: 125°C
Insulation voltage: 2500V(AC)
Saturation current: 2400A
Gate switching current: 100mA
Applications:
- Motor control circuits
- Soft start motor circuits
- DC power supplies
- Uninterruptible power supplies (UPS)
- Heater power regulation devices
- Welding equipment
- Frequency converters
- Battery charging/discharging circuits
