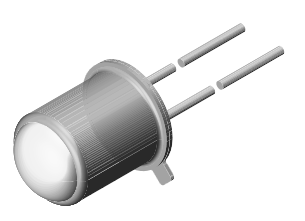

TSTS7100 VISHAY

Symbol Micros: OIN TSTS7100

502260

OIN TSTS7100

Contractor Symbol:

Case : Rys.OIN TSTS7100

Datasheet

Technical drawing Add to favourites

IR emiting diode THT 4,7mm; wavelenght: 950nm; viewing angle: 10° Power: 170mW; IF=100mA; VF= 1,4-2,2V; working temperature: -40°C - 85°C

Parameters

Manufacturer:	VISHAY
Size:	4,7mm
Mounting:	THT
Forward current:	100mA
Optical power:	170mW
Wavelength (nm):	950nm
Viewing Angle:	10°

All parameters

Manufacturer:: Vishay Manufacturer part number: TSTS7100 Case style: Rys.OIN TSTS7100

External warehouse:

2000 pcs.

Quantity of pcs.	1000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,6135

Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	VISHAY
Size:	4,7mm
Mounting:	THT
Forward current:	100mA
Optical power:	170mW
Wavelength (nm):	950nm
Viewing Angle:	10°
Operating temperature (range):	-40°C ~ 85°C
