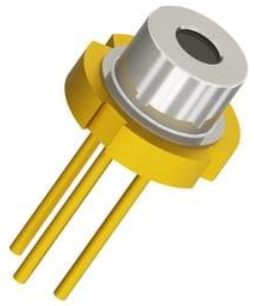

RLD90QZWB-00A ROHM Semiconductor

Symbol Micros: OL.RLD90QZWB-00A

411255

OL.RLD90QZWB-00A

Contractor Symbol:

Case : Rys.OL.RLD90QZWB-00A

Datasheet

Technical drawing Add to favourites

laser diode; wavelenght: 895-915nm; output power: 20-25W; forward current: 11A Operating voltage: 13-17V; operating temperature: -40°C ~ 85°C

Parameters

Forvard volatge range:	13V ~ 17V
Forward current:	11A
Power:	25W
Wavelength range:	895nm ~ 915nm
Operating temperature (range):	-40°C ~ 85°C
Diameter:	5,6mm
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Forvard volatge range:	13V ~ 17V
Forward current:	11A
Power:	25W
Wavelength range:	895nm ~ 915nm
Operating temperature (range):	-40°C ~ 85°C
Diameter:	5,6mm
Mounting:	THT
