HSMC-C380 BROADCOM

Symbol Micros: OLC.HSMC-C380

482420

OLC.HSMC-C380

Contractor Symbol:

Case : Rys.OLC.HSMC-C380

Datasheet

Technical drawing Technical drawing Add to favourites

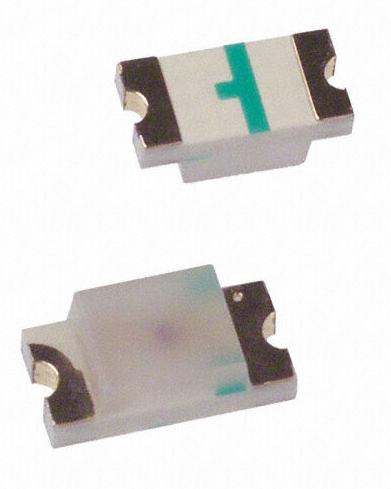

LED SMD 1206 (3216); red; luminosity: 450-4500mcd; viewing angle: 15°; diode current: 25mA Wavelength: 630-643nm; power: 60mW; working voltage: 1,6-2,4V

Parameters

Manufacturer:	Broadcom
Diode type:	LED
Mounting:	SMD
Case:	1206
LED colours:	Red
Brightness:	450mcd ~ 4500mcd
Viewing angle:	15°

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Broadcom
Diode type:	LED
Mounting:	SMD
Case:	1206
LED colours:	Red
Brightness:	450mcd ~ 4500mcd
Viewing angle:	15°
LED diode current:	25mA
Diode lens:	Diffusive
Power:	60mW
Nominal voltage:	1,6V ~ 2,4V
Wavelength range:	630nm ~ 643nm
Operating temperature (range):	-40°C ~ 85°C
