KPHHS-1005SURCK Kingbright

Symbol Micros: OLCS.02w0220

85847

OLCS.02w0220

Contractor Symbol:

Case : SMD 0402 (1005)

Datasheet

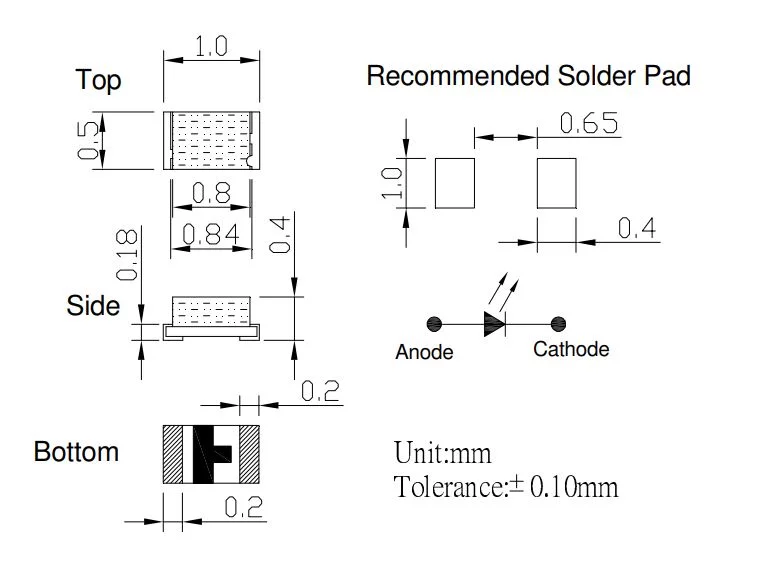

Technical drawing Add to favourites

LED SMD 0402; red; luminosity: 120-220mcd; wavelenght: 630nm; viewing angle: 120° Current: 20mA; operating voltage: 1,95-2,5V; operating temperature: -40°C ~ 85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Mounting:	SMD
Colour:	Red
Brightness:	120mcd ~ 220mcd
Wavelength (nm):	630nm
Forward current:	30mA
Viewing angle:	120°
Forvard volatge range:	1,95V ~ 2,5V

All parameters

Manufacturer:: KingBright Manufacturer part number: KPHHS-1005SURCK RoHS Case style: SMD 0402 (1005) Datasheet

In stock:

3980 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2064	0,1137	0,0752	0,0627	0,0589

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Mounting:	SMD
Colour:	Red
Brightness:	120mcd ~ 220mcd
Wavelength (nm):	630nm
Forward current:	30mA
Viewing angle:	120°
Forvard volatge range:	1,95V ~ 2,5V
Operating temperature (range):	-40°C ~ 85°C
