KPTD-3216SURCK KINGBRIGHT

Symbol Micros: OLCS.06s0050

28508

OLCS.06s0050

Contractor Symbol:

Case : Rys.OLS.06s

Datasheet

Technical drawing Technical drawing Add to favourites

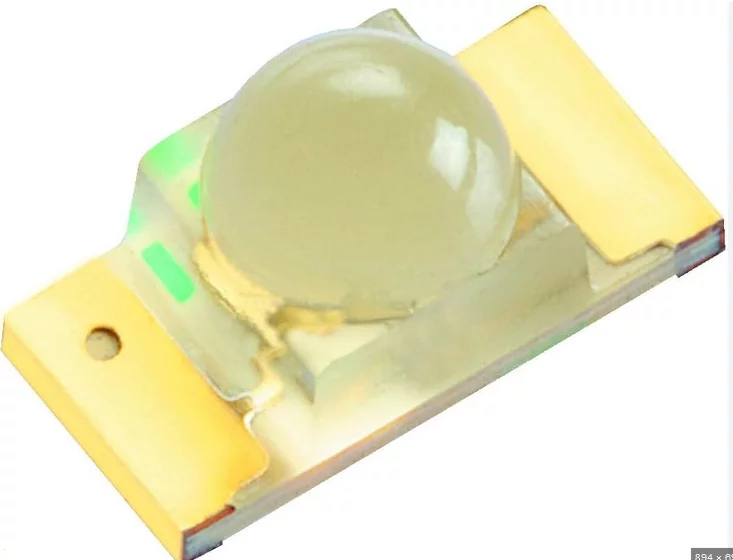

LED SMD 1206 (3216); red; 700-1500mcd; 628nm; 30mA; 50°; 1.95~2.5V; -40~+85°C; waterclear; with a convex lens

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Manufacturer:	KingBright
Diode type:	LED
Mounting:	SMD
Case:	1206
LED colours:	Red
Brightness:	700 ~ 1500mcd
Viewing angle:	35°

All parameters

Manufacturer:: KingBright Manufacturer part number: KPTD-3216SURCK RoHS Case style: Rys.OLS.06s

In stock:

130 pcs.

Quantity of pcs.	3+	20+	100+	500+	1952+
Net price (EUR)	0,3054	0,1628	0,1266	0,1146	0,1109

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000/8000 Quantity (multiple: 1)

- +

Manufacturer:: KingBright Manufacturer part number: KPTD-3216SURCK RoHS Case style: Rys.OLS.06s

In stock:

1642 pcs.

Quantity of pcs.	3+	20+	100+	500+	1952+
Net price (EUR)	0,3054	0,1628	0,1266	0,1146	0,1109

Add to comparison tool Add inquiry (RFQ)

Packaging:
1952 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	KingBright
Diode type:	LED
Mounting:	SMD
Case:	1206
LED colours:	Red
Brightness:	700 ~ 1500mcd
Viewing angle:	35°
Wavelength (nm):	630nm
Colour:	Red
Forward current:	30mA
Forvard volatge range:	1,9~2,5V
Operating temperature (range):	-40°C ~ 85°C
