HSMF-C165 Broadcom

Symbol Micros: OLCZ.HSMF-C165

482368

OLCZ.HSMF-C165

Contractor Symbol:

Case : Rys.OLCZ.HSMF-C165

Datasheet

Technical drawing Add to favourites

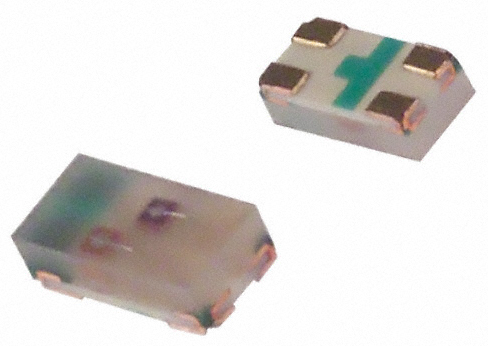

LED SMD 0603; red-green; luminosity: 2,8-10mcd/4,5-15mcd; viewing angle: 120°; diode current: 20mA Wavelength: 621-636nm/570-572nm; diffused; working voltage: 1,95-2,6V/2,2-2,6V; power: 52mW

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Manufacturer:	Broadcom
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Red-Green
Brightness:	2,8mcd ~ 10mcd/4,5mcd ~ 15mcd
Viewing angle:	120°

All parameters

Manufacturer:: AVAGO Manufacturer part number: HSMF-C165 RoHS Case style: Rys.OLCZ.HSMF-C165

In stock:

4000 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,2490	0,1327	0,1029	0,0949	0,0909

Add to comparison tool Add inquiry (RFQ)

Packaging:
4000 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Broadcom
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Red-Green
Brightness:	2,8mcd ~ 10mcd/4,5mcd ~ 15mcd
Viewing angle:	120°
LED diode current:	20mA
Diode lens:	Diffusive
Power:	52mW
Nominal voltage:	1,95V ~ 2,6V
Wavelength range:	621nm ~ 636nm/570nm ~ 572nm
Operating temperature (range):	-40°C ~ 85°C
