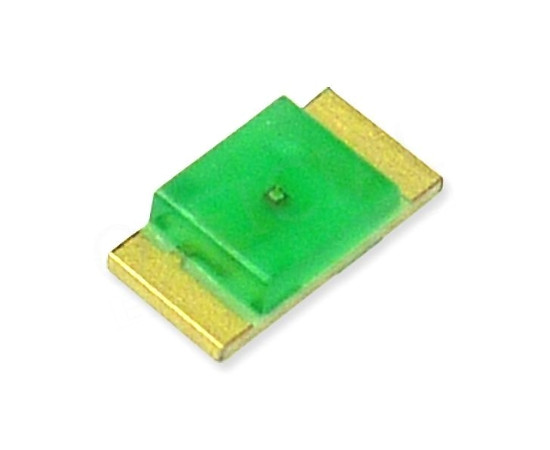

KPT-3216SGD Kingbright

Symbol Micros: OLZS.06m0013kb

89611

OLZS.06m0013kb

Contractor Symbol:

Case : Rys.OLZS.06m

Datasheet

Technical drawing Add to favourites

LED SMD 1206 (3216); green; 3.2~12.5mcd; 565nm; 25mA; 120°; 2.2~2.5V; -40~+85°C; diffused

Parameters

Manufacturer:	KingBright
Diode type:	LED
Mounting:	SMD
LED colours:	Green
Brightness:	3,2~12,5mcd
Viewing angle:	120°
LED diode current:	25mA

All parameters

Manufacturer:: KingBright Manufacturer part number: KPT-3216SGD RoHS Case style: Rys.OLZS.06m

In stock:

0 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2219	0,1120	0,0677	0,0535	0,0493

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-05-05

Quantity of pcs.: 4000

• Parameters

Manufacturer:	KingBright
Diode type:	LED
Mounting:	SMD
LED colours:	Green
Brightness:	3,2~12,5mcd
Viewing angle:	120°
LED diode current:	25mA
Wavelength (nm):	565nm
Forward current:	25mA
Forvard volatge range:	2,2~2,5V
Operating temperature (range):	-40°C ~ 85°C
