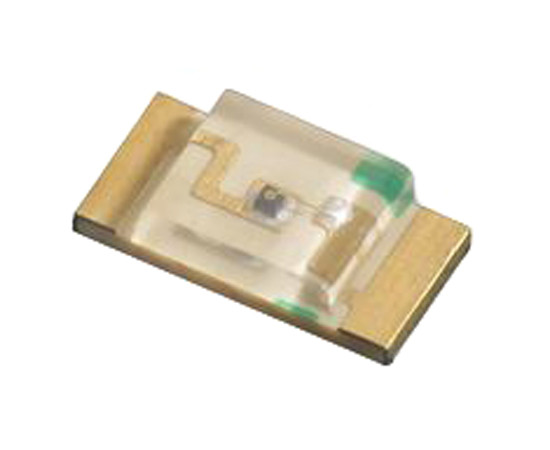

KPT-3216SGC Kingbright

Symbol Micros: OLZS.06w0012kbn

85856

OLZS.06w0012kbn

Contractor Symbol:

Case : Rys.OLS.06wn

Datasheet

Technical drawing Add to favourites

LED SMD 1206 (3216); green; 5~12mcd; 568nm; 25mA; 120°; 2.2~2.5V; -40~+85°C; waterclear; low profile

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Diode type:	LED
Mounting:	SMD
LED colours:	Green
Brightness:	5~12mcd
Viewing angle:	120°
LED diode current:	25mA
Wavelength (nm):	568nm

All parameters

Manufacturer:: KingBright Manufacturer part number: KPT-3216SGC RoHS Case style: Rys.OLS.06wn Datasheet

In stock:

1338 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,1837	0,0868	0,0486	0,0368	0,0334

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Diode type:	LED
Mounting:	SMD
LED colours:	Green
Brightness:	5~12mcd
Viewing angle:	120°
LED diode current:	25mA
Wavelength (nm):	568nm
Forward current:	25mA
Forvard volatge range:	2,2~2,5V
Operating temperature (range):	-40°C ~ 85°C
