H22A1

Symbol Micros: OOH22A1

108469

OOH22A1

Contractor Symbol:

Case : Rys.H22Ax

Datasheet

Technical drawing Add to favourites

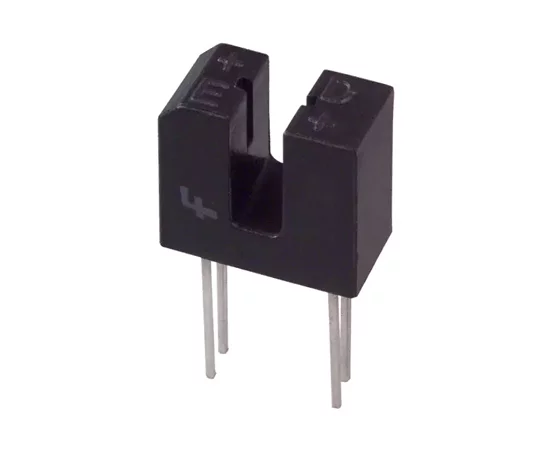

optocoupler 3mm; Vout 30V; Vcesat 5V; If 60mA; Ic 3mA; -55°C~100°C;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Manufacturer:	Fairchild
Number of channels:	1
Output type:	Phototransistor
Forward current:	60mA
Collector current [Ic]:	3mA
Output voltage:	30V
Operating temperature (range):	-55°C ~ 100°C

All parameters

Manufacturer:: Fairchild Manufacturer part number: H22A1-I RoHS Case style: Rys.H22Ax Datasheet

In stock:

41 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,1082	0,8455	0,7004	0,6128	0,5829

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Fairchild
Number of channels:	1
Output type:	Phototransistor
Forward current:	60mA
Collector current [Ic]:	3mA
Output voltage:	30V
Operating temperature (range):	-55°C ~ 100°C
Slot width:	3 mm
Case:	Rys.H22Ax
