VISHAY TDSR1060

Symbol Micros: OWS.TDSR1060

121879

OWS.TDSR1060

Contractor Symbol:

Case : Rys.OWS.TDSR1060

Datasheet

Technical drawing Add to favourites

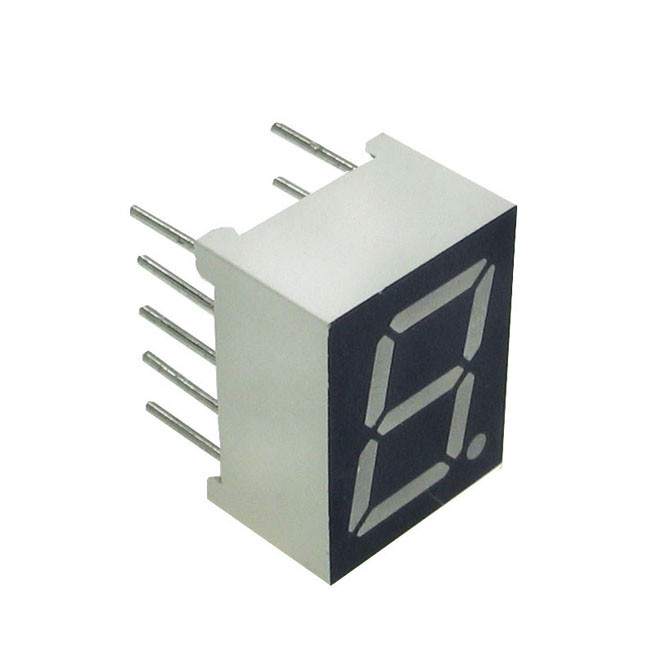

0.39" LED single digit display; red (640nm); luminosity: 0.28 - 3mcd; grey background; common anode; IF1mA; VF=1.85V;

Parameters

Manufacturer:	VISHAY
Number of characters:	1
Digit height:	10mm
Backlight colour:	Red
Brightness:	0,28mcd ~ 3mcd
Common electrode:	Cathode
Pole pitch:	2,54mm

All parameters

Manufacturer:: Vishay Manufacturer part number: TDSR1060 RoHS Case style: Rys.OWS.TDSR1060

In stock:

80 pcs.

Quantity of pcs.	1+	5+	40+	80+	400+
Net price (EUR)	1,5082	1,0550	0,8560	0,8272	0,7937

Add to comparison tool Add inquiry (RFQ)

Packaging:
40/80 Quantity (multiple: 1)

- +

Manufacturer:: - Manufacturer part number: TDSR1060 Case style: Rys.OWS.TDSR1060

External warehouse:

80 pcs.

Quantity of pcs.	1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,7937

Add to comparison tool Add inquiry (RFQ)

Packaging:
40

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	VISHAY
Number of characters:	1
Digit height:	10mm
Backlight colour:	Red
Brightness:	0,28mcd ~ 3mcd
Common electrode:	Cathode
Pole pitch:	2,54mm
Pitch between rows:	10,16mm
Dimensions:	9,45x12,6x7mm
Wavelength (nm):	640nm
Forward current:	10mA
