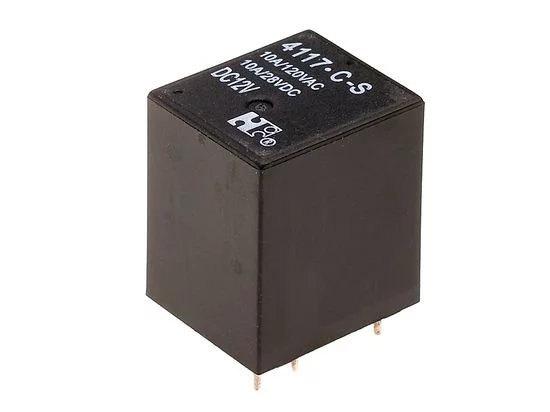

4117-CS20 12VDC automotive relay

Symbol Micros: P 4117CS20-12

27305

P 4117CS20-12

Contractor Symbol:

Case : Rys.4117s

Datasheet

Technical drawing Add to favourites

20A; 12V; SPDT; coil power 1W; 17,5 x 15 x 20 mm PCB; equivalent: HFKM, AZ975-976, A203-A208/V23072-C, OAR

Equivalents

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Coil voltage (V):	12V
Contact current:	20A
Contact voltage:	75VDC/380VAC
Coil resistance:	145Ohm
Coil power:	1W
Mounting:	PCB

All parameters

Manufacturer:: Forward Relays Manufacturer part number: 4117CS2012VDC1.0 RoHS Case style: Rys.4117s Datasheet

In stock:

745 pcs.

Quantity of pcs.	2+	10+	25+	200+	1000+
Net price (EUR)	0,9202	0,5843	0,4992	0,4187	0,4003

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/1000 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPDT
Coil voltage (V):	12V
Contact current:	20A
Contact voltage:	75VDC/380VAC
Coil resistance:	145Ohm
Coil power:	1W
Mounting:	PCB
Manufacturer:	NFR
Dimensions:	17,5 x 15 x 20 mm
Operating temperature (range):	-40°C ~ 105°C

Equivalents

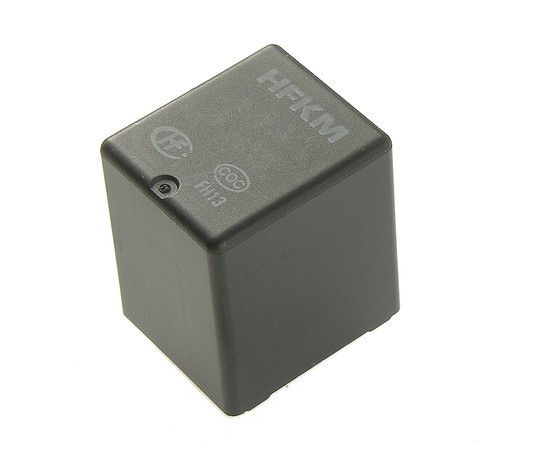

HFKM/012-1ZST automotive relay

Symbol Micros: HFKM/012-1ZST automotive relay Info Add to favourites Equivalents

Add inquiry (RFQ)

Item available on request
