ALE1PB12 Panasonic

Symbol Micros: P ALE1PB12

125719

P ALE1PB12

Contractor Symbol:

Case : ALE Panasonic

Datasheet

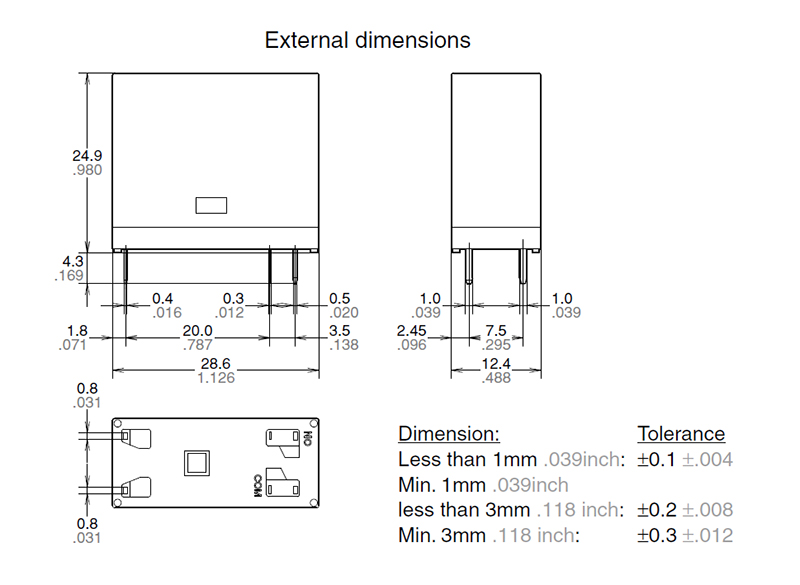

Technical drawing Add to favourites

SPST-NO; 12V DC; 16A; 400mW; 28,6 x 12,4 x 24,9mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	16A
DC contact current:	16A
Coil power:	400mW
Mounting:	PCB

All parameters

Manufacturer:: Panasonic Manufacturer part number: ALE1PB12 RoHS Case style: ALE Panasonic Datasheet

In stock:

35 pcs.

Quantity of pcs.	1+	5+	20+	50+	200+
Net price (EUR)	2,2339	1,7688	1,5949	1,5362	1,4892

Add to comparison tool Add inquiry (RFQ)

Packaging:
5/50 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	16A
DC contact current:	16A
Coil power:	400mW
Mounting:	PCB
Manufacturer:	PANASONIC
Dimensions:	28,6 x 12,4 x 24,9mm
Operating temperature (range):	-40°C ~ 85°C
