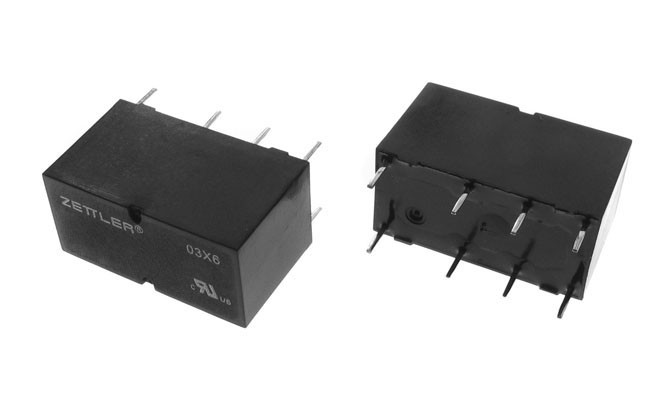

AZ822-2C-12DSE signal relay

Symbol Micros: P AZ822p012

10111

P AZ822p012

Contractor Symbol:

Case : Rys.AZ822

Datasheet

Technical drawing Add to favourites

2A; 12V; DPDT; Coil power 75mW; 20,0 x 9,8 x 12mm; IP67 SMT equivalent: JRC-27F, V23102/V23105, G5V-2, 30.22, RSM822

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage (V):	12V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	74mW
Mounting:	PCB

All parameters

Manufacturer:: Zettler Manufacturer part number: AZ822-2C-12DSE RoHS Case style: Rys.AZ822 Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,8040	1,4329	1,2943	1,2238	1,2027

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage (V):	12V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	74mW
Mounting:	PCB
Manufacturer:	RELPOL
Dimensions:	20,0 x 9,8 x 12,0mm
Operating temperature (range):	-55°C ~ 90°C
