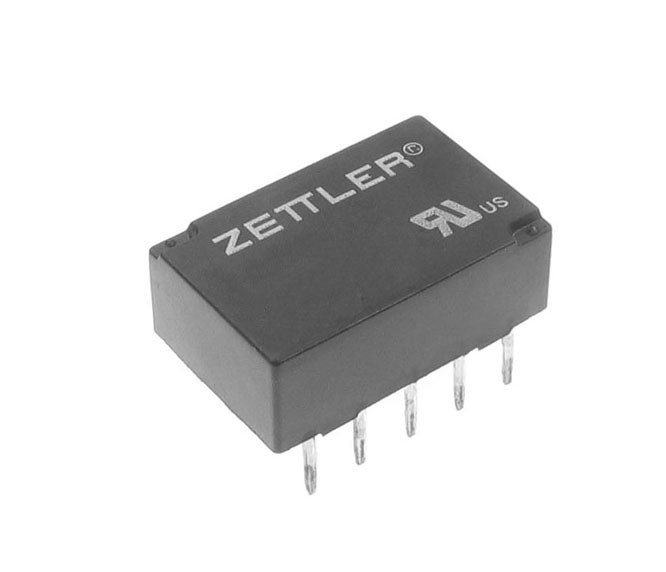

AZ850-24 signal relay, monostable

Symbol Micros: P AZ850p024

10340

P AZ850p024

Contractor Symbol:

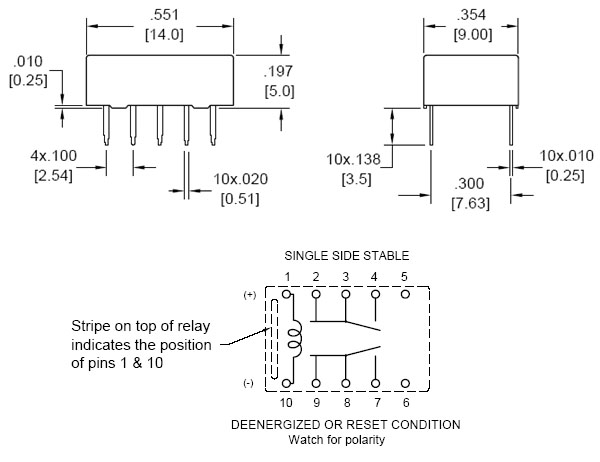

Case : Rys.AZ850-3

Datasheet

Technical drawing Add to favourites

2A; 24V; DPDT; Coil power 100mW; 14,0 x 9,0 x 5,0mm; IP67 PCB; Equivalent: RSM850

Equivalents

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage (V):	24V
AC contact current:	500mA
DC contact current:	1A
Contact voltage:	250VAC/220VDC
Coil power:	169mW
Mounting:	PCB

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	DPDT
Coil voltage (V):	24V
AC contact current:	500mA
DC contact current:	1A
Contact voltage:	250VAC/220VDC
Coil power:	169mW
Mounting:	PCB
Manufacturer:	RELPOL
Dimensions:	14,0 x 9,0 x 5,0mm
Operating temperature (range):	-40°C ~ 70°C

Equivalents

RSM850-6112-85-1024 subminiature signal relay, monostable

Symbol Micros: RSM850-6112-85-1024 subminiature signal relay, monostable Info Add to favourites Equivalents

Add inquiry (RFQ)

Item available on request
