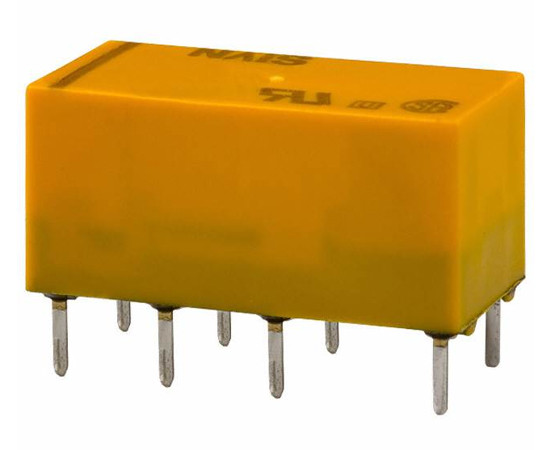

DS2Y-S-DC24V Panasonic

Symbol Micros: P DS2Y-S-DC24V

125729

P DS2Y-S-DC24V

Contractor Symbol:

Case : DS2Y Panasonic

Datasheet

Technical drawing Add to favourites

DPDT; 24V DC; 2A; 200mW; 20 x 9,9 x 9,9mm PCB

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	200mW

All parameters

Manufacturer:: Panasonic Manufacturer part number: DS2Y-S-DC24V RoHS Case style: DS2Y Panasonic Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	5+	20+	40+	100+
Net price (EUR)	5,7547	5,1625	4,9251	4,8555	4,7956

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	2A
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	200mW
Mounting:	PCB
Manufacturer:	PANASONIC
Dimensions:	20 x 9,9 x 9,9mm
Operating temperature (range):	-40°C ~ 70°C
