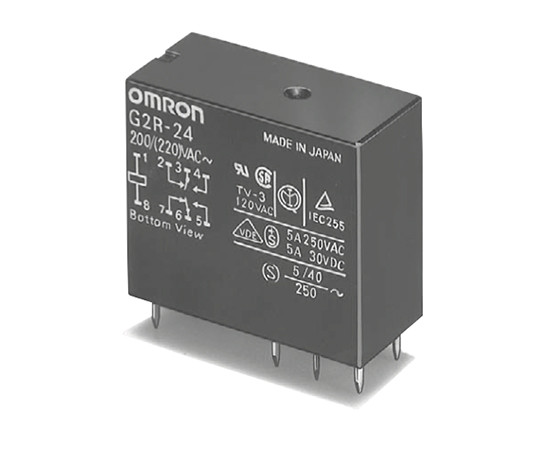

G2R-1A-E-DC24  power relay

Symbol Micros: P G2R-1A-E-DC24

113933

P G2R-1A-E-DC24

Contractor Symbol:

Case : Rys.G2R

Datasheet

Technical drawing Add to favourites

24V; 16A; 530mW; SPST; 29 x 13 x 25,5mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPST
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	16A
DC contact current:	16A
Contact voltage:	380VAC/125VDC
Coil power:	530mW

All parameters

Manufacturer:: OMRON Manufacturer part number: G2R-1A-E-24VDC RoHS Case style: Rys.G2R Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,6402	2,2127	1,9684	1,8157	1,7594

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPST
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	16A
DC contact current:	16A
Contact voltage:	380VAC/125VDC
Coil power:	530mW
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	29 x 13 x 25,5mm
Operating temperature (range):	-40°C ~ 70°C
