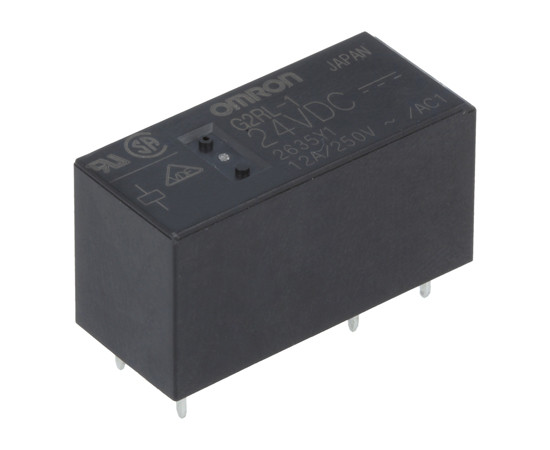

G2RL-1-24DC Omron

Symbol Micros: P G2RL-1-24DC

127789

P G2RL-1-24DC

Contractor Symbol:

Case : Rys.G2RL

Datasheet

Technical drawing Add to favourites

24V; 12A; SPDTL 400mW; PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	12A
DC contact current:	12A
Contact voltage:	440VAC/300VDC
Coil power:	400mW

All parameters

Manufacturer:: OMRON Manufacturer part number: G2RL-1-DC24 RoHS Case style: Rys.G2RL Datasheet

In stock:

24 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	2,2131	1,7553	1,5873	1,5022	1,4746

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	12A
DC contact current:	12A
Contact voltage:	440VAC/300VDC
Coil power:	400mW
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	29 x 12,5 x 15,7mm
Operating temperature (range):	-40°C ~ 85°C
