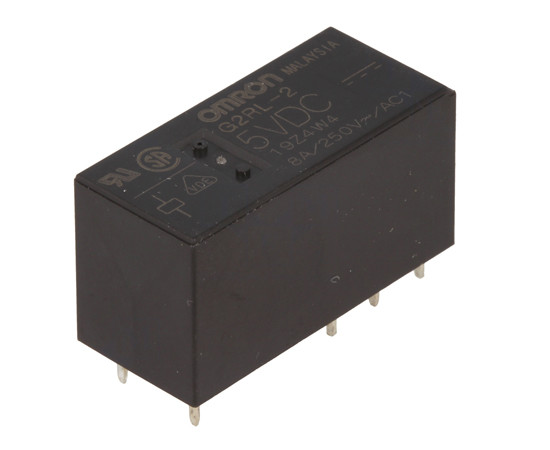

G2RL-2-05VDC miniature relay

Symbol Micros: P G2RL-2-05DC

108748

P G2RL-2-05DC

Contractor Symbol:

Case : Rys.G2RL

Datasheet

Technical drawing Add to favourites

5V; 8A; 400mW; DPDT; 29 x 12.7 x 15.7mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
AC contact current:	8A
DC contact current:	8A
Contact voltage:	440VAC/300VDC
Coil power:	400mW

All parameters

Manufacturer:: OMRON Manufacturer part number: G2RL-2-05 RoHS Case style: Rys.G2RL Datasheet

In stock:

60 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	2,9174	2,4030	2,2080	2,1070	2,0835

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
AC contact current:	8A
DC contact current:	8A
Contact voltage:	440VAC/300VDC
Coil power:	400mW
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	29 x 12.7 x 15.7mm
Operating temperature (range):	-40°C ~ 85°C
