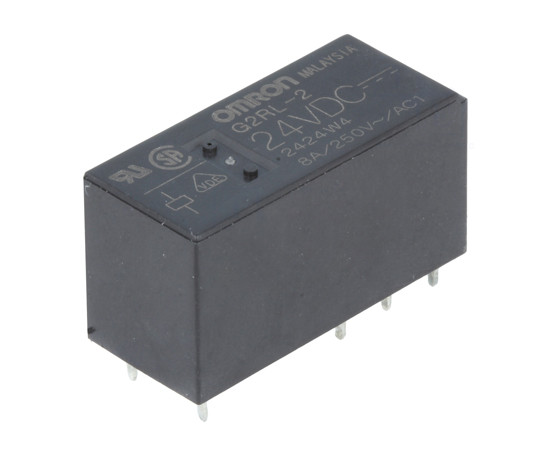

G2RL-2-24VDC miniature relay

Symbol Micros: P G2RL-2-24DC

108749

P G2RL-2-24DC

Contractor Symbol:

Case : Rys.G2RL

Datasheet

Technical drawing Add to favourites

24V; 8A; 400mW; DPDT; 29 x 12.7 x 15.7mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	8A
DC contact current:	8A
Contact voltage:	440VAC/300VDC
Coil power:	400mW

All parameters

Manufacturer:: OMRON Manufacturer part number: G2RL-2-24 RoHS Case style: Rys.G2RL Datasheet

In stock:

156 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	2,9362	2,4194	2,2221	2,1211	2,0976

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	8A
DC contact current:	8A
Contact voltage:	440VAC/300VDC
Coil power:	400mW
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	29 x 12.7 x 15.7mm
Operating temperature (range):	-40°C ~ 85°C
