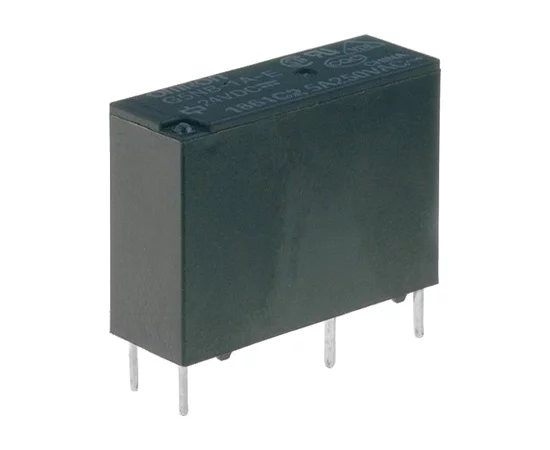

G5NB-1A-E-24VDC miniature relay

Symbol Micros: P G5NB-1A-E-24

108744

P G5NB-1A-E-24

Contractor Symbol:

Case : Rys.G5NB

Datasheet

Technical drawing Add to favourites

24V; 5; 200mW; SPST-NO; 20,5 x 15,3 x 7,2mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	5A
DC contact current:	5A
Contact voltage:	250VAC/30VDC
Mounting:	PCB

All parameters

Manufacturer:: OMRON Manufacturer part number: G5NB-1A-E-24VDC RoHS Case style: Rys.G5NB Datasheet

In stock:

215 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,1839	0,8292	0,7047	0,6436	0,6225

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/300 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-01-03

Quantity of pcs.: 100

• Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	5A
DC contact current:	5A
Contact voltage:	250VAC/30VDC
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	20,5 x 15,3 x 7,2mm
Operating temperature (range):	-40°C ~ 70°C
