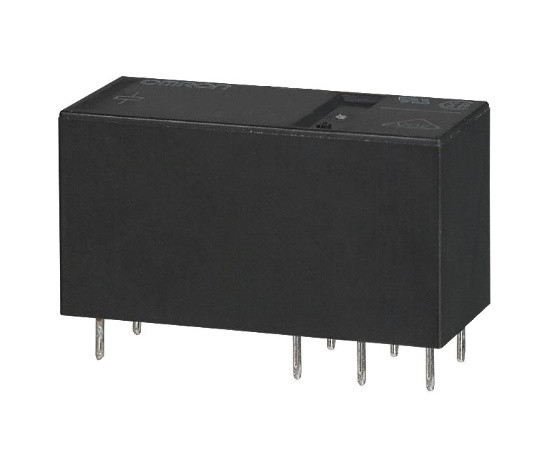

G5RL-1-E-HR 12 low profile power relay

Symbol Micros: P G5RL-1-E-HR 12

115742

P G5RL-1-E-HR 12

Contractor Symbol:

Case : Rys.G5RL-HR

Datasheet

Add to favourites

12V; 16A; SPDT; 400mW; 29 x 12,7 x 15,7mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	16A
DC contact current:	16A
Contact voltage:	250VAC/24VDC
Mounting:	PCB

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	16A
DC contact current:	16A
Contact voltage:	250VAC/24VDC
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	29 x 12.7 x 15.7mm
Operating temperature (range):	-40°C ~ 85°C
