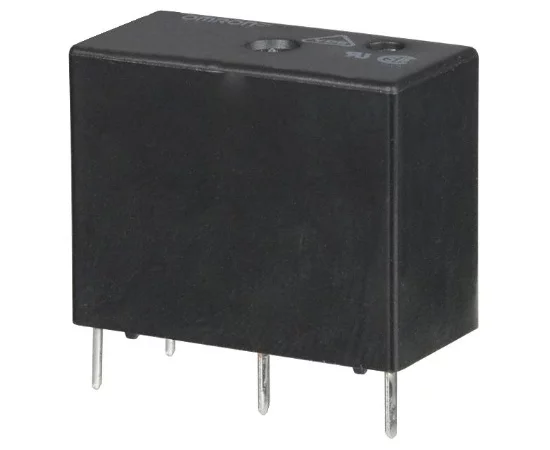

G5SB-14-12 power relay

Symbol Micros: P G5SB-14-12DC

113815

P G5SB-14-12DC

Contractor Symbol:

Case : Rys.G5SB

Datasheet

Add to favourites

12V; 5A; 400mW; SPDT; 20,3 x 10,3 x 15,8mm Through Hole

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	5A
DC contact current:	5A
Contact voltage:	250VAC/30VDC
Mounting:	THT

All parameters

Manufacturer:: OMRON Manufacturer part number: G5SB-14 12VDC RoHS Case style: Rys.G5SB Datasheet

In stock:

86 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,7187	1,2764	1,1151	1,0368	1,0114

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	5A
DC contact current:	5A
Contact voltage:	250VAC/30VDC
Mounting:	THT
Manufacturer:	OMRON
Dimensions:	20,3 x 10,3 x 15,8mm
Operating temperature (range):	-40°C ~ 70°C
