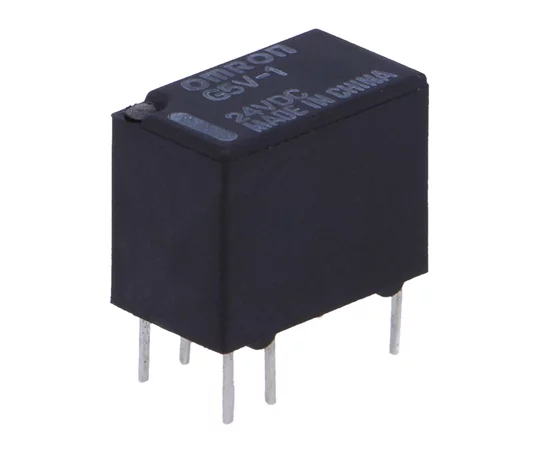

G5V1-24VDC subminiature relay

Symbol Micros: P G5V1-24

87753

P G5V1-24

Contractor Symbol:

Case : Rys.G5V1

Datasheet

Technical drawing Add to favourites

24V; 1A; 150mW; SPDT; 12.5 x 7.5 x 10mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	0,5A
DC contact current:	1A
Contact voltage:	max. 60V DC, max. 125V AC
Coil power:	150mW

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	0,5A
DC contact current:	1A
Contact voltage:	max. 60V DC, max. 125V AC
Coil power:	150mW
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	12,5x7,5x10mm
Operating temperature (range):	-30°C ~ 70°C
