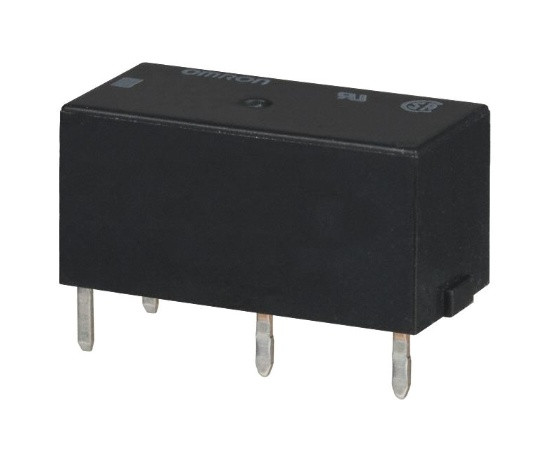

G6B-1114P-US-24 miniature relay

Symbol Micros: P G6B-1114P-US-24

115755

P G6B-1114P-US-24

Contractor Symbol:

Case : Rys.G6B1114

Datasheet

Add to favourites

24V; 5A; 200mW; SPST-NO; 20 x 10 x 10mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	5A
DC contact current:	5A
Contact voltage:	380VAC/125VDC
Mounting:	PCB

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPST-NO
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	5A
DC contact current:	5A
Contact voltage:	380VAC/125VDC
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	20,0 x 10,0 x 10,0mm
Operating temperature (range):	-25°C ~ 70°C
